2013 T4S Front Left & Right

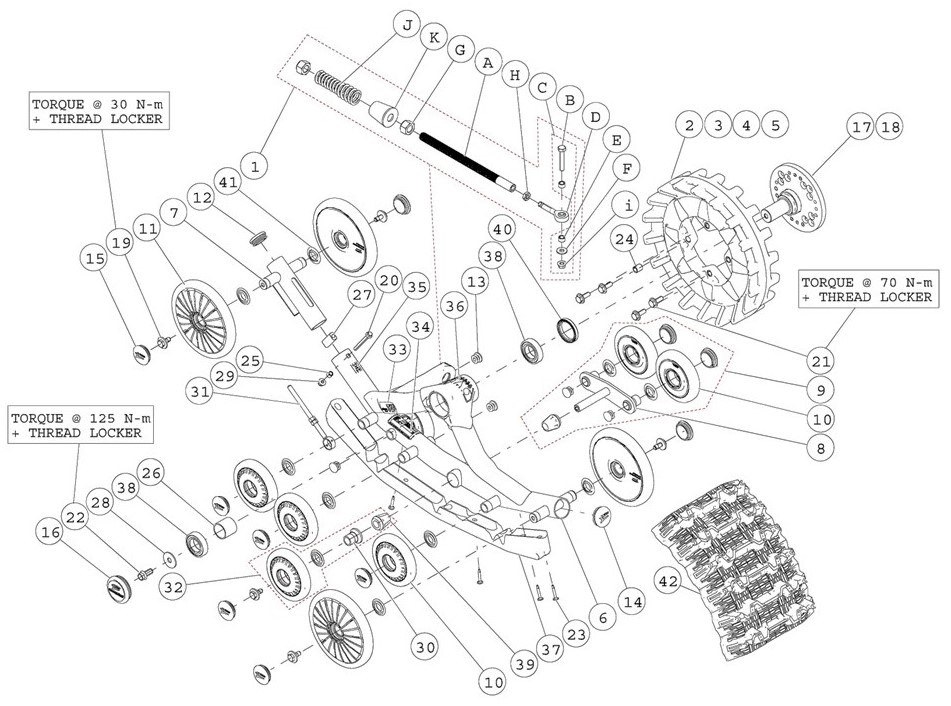

Keeping your 2013 T4S Front Left & Right performing at its peak means having access to the right replacement parts. This parts kit diagram shows every component available for your specific track system.

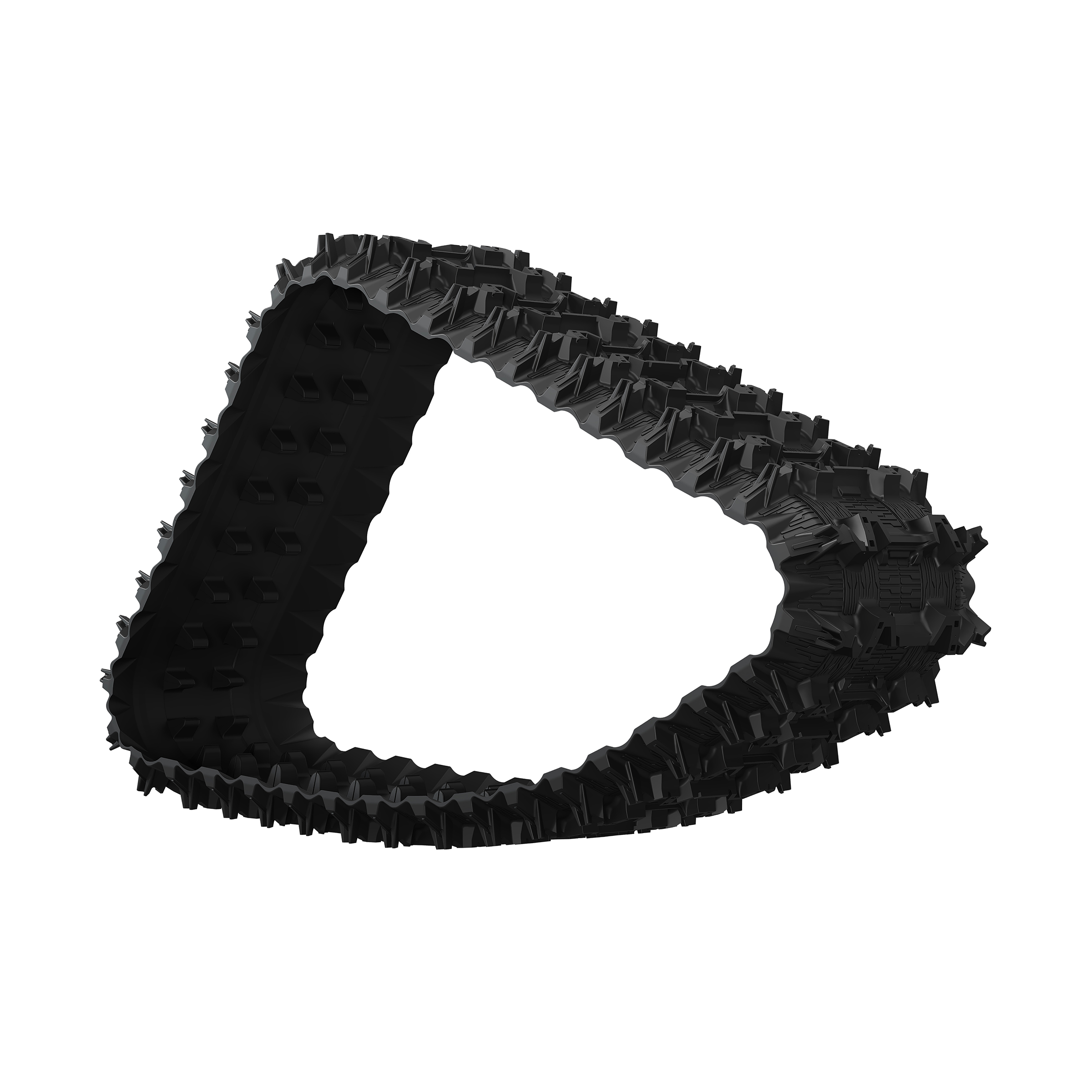

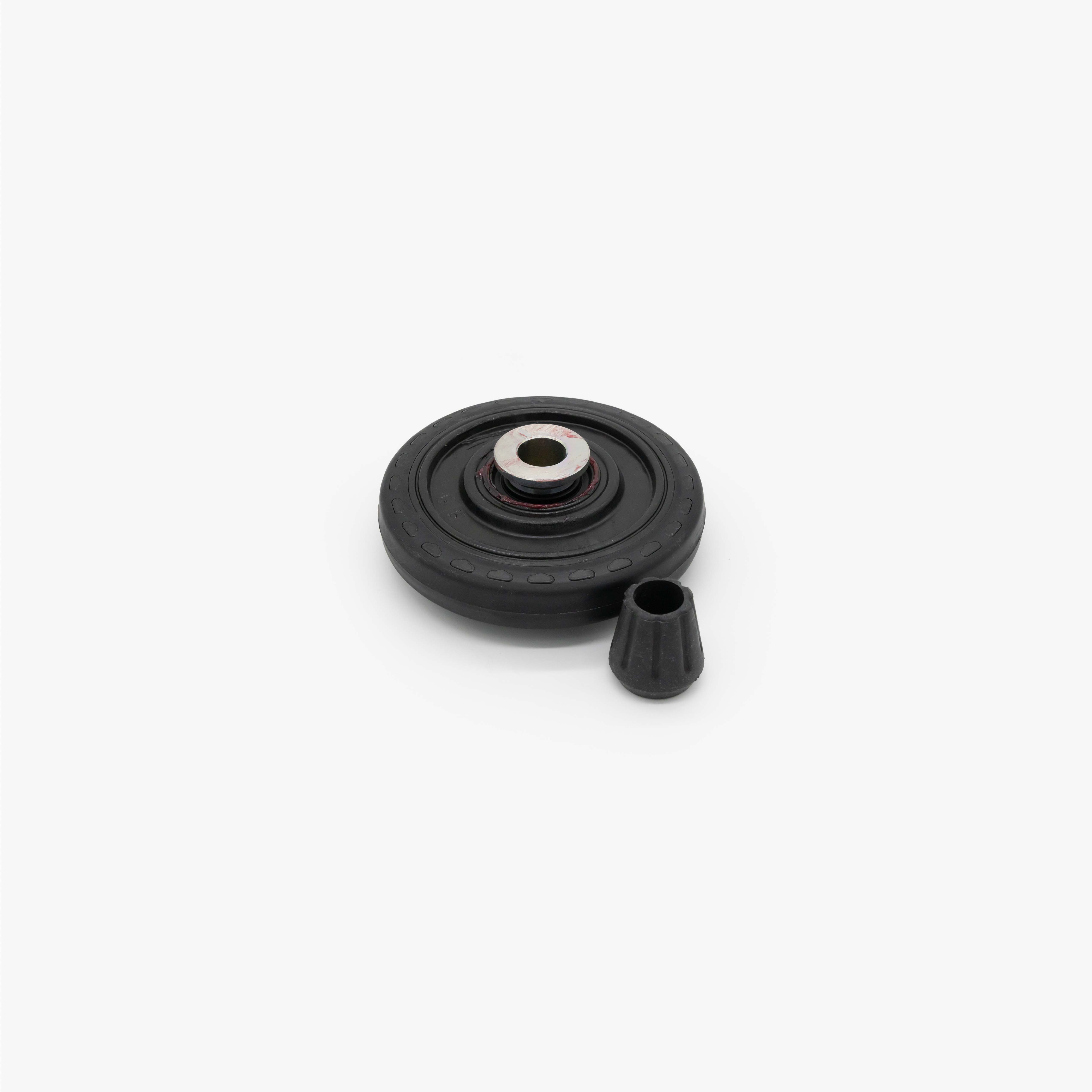

Kit Contents: STABILIZING ROD ASSEMBLY, 200 LBS/IN, S-KIT 15/4 SPROCKET, S-KIT 16/4 SPROCKET, S-KIT 17/4 SPROCKET, S-KIT 18/4 SPROCKET, S-KIT FRAME FR ATV 2012-2015, S-KIT FRAME FL ATV 2012-2015, ATV T4S Front Short Tensioner Kit 6622, Stabilizer replacement kit, Stabilizer w/wheels ass'y (SP), ATV T4S Smaller Bogey Wheel, ATV T4S Larger Bogey Wheel, PLASTIC WHEEL CAP 1'', PLASTIC FRAME CAP 2'', WHEEL CAP 2'', HUB CAP CAMSO ASSEMBLY, S-KIT HUB MULTI POLARIS, S-KIT MULTI MODEL HUB, WHEEL HUB BOLT KIT - 125nm or 92ft lbs, BUSHING 5/8" O.D. X 27/32" I.D. X 0.709" LG, SLIDE BUSHING, INTERNAL SPACER, TENSIONER BUSHING, W, 1. 625,0.515,11 GA., FNN, M8-1.25, 8, ZP, DIN6926, WHEEL AXLE, STABILIZER, TRACK TENSIONER ROD ASSEMBLY, WHEEL AXLE ASSEMBLY, STICKER - CAMOPLAST ATV MY2016, STICKER FRONT LEFT PICTOGRAM, STICKER FRONT RIGHT PICTOGRAM, STICKER WARNING, T4S/X4S ATV Front & Rear Hifax Guide, Top Hub Bearing ALL Camso ATV & UTVs, RUBBER CONE, DOUBLE LIPS SHAFT SEAL, TRACK 11.5" X 93.38" X 1.00" (9150S), THREADED ROD, STABILIZING ROD, HEX SCR, ISO 4014 (DIN 931), 10.9,YZN / M10X1.5X60, STABILIZING ROD SHORT BOLT KIT, ROD END, STABILIZING ROD, ROD END SPACER, HEX NYLON INSERT, ISO 7040 (DIN 982), 8, YZN / M20X2.5, HEX THIN NUT, ISO 4035 (DIN 439), 8, YZN / M12X1.25, FNN, M10-1.5, 8, ZP, DI N6926, STABILIZING ROD SPRING 200 LBS/IN, RUBBER DAMPER.
