2012 T4S Front Left & Right

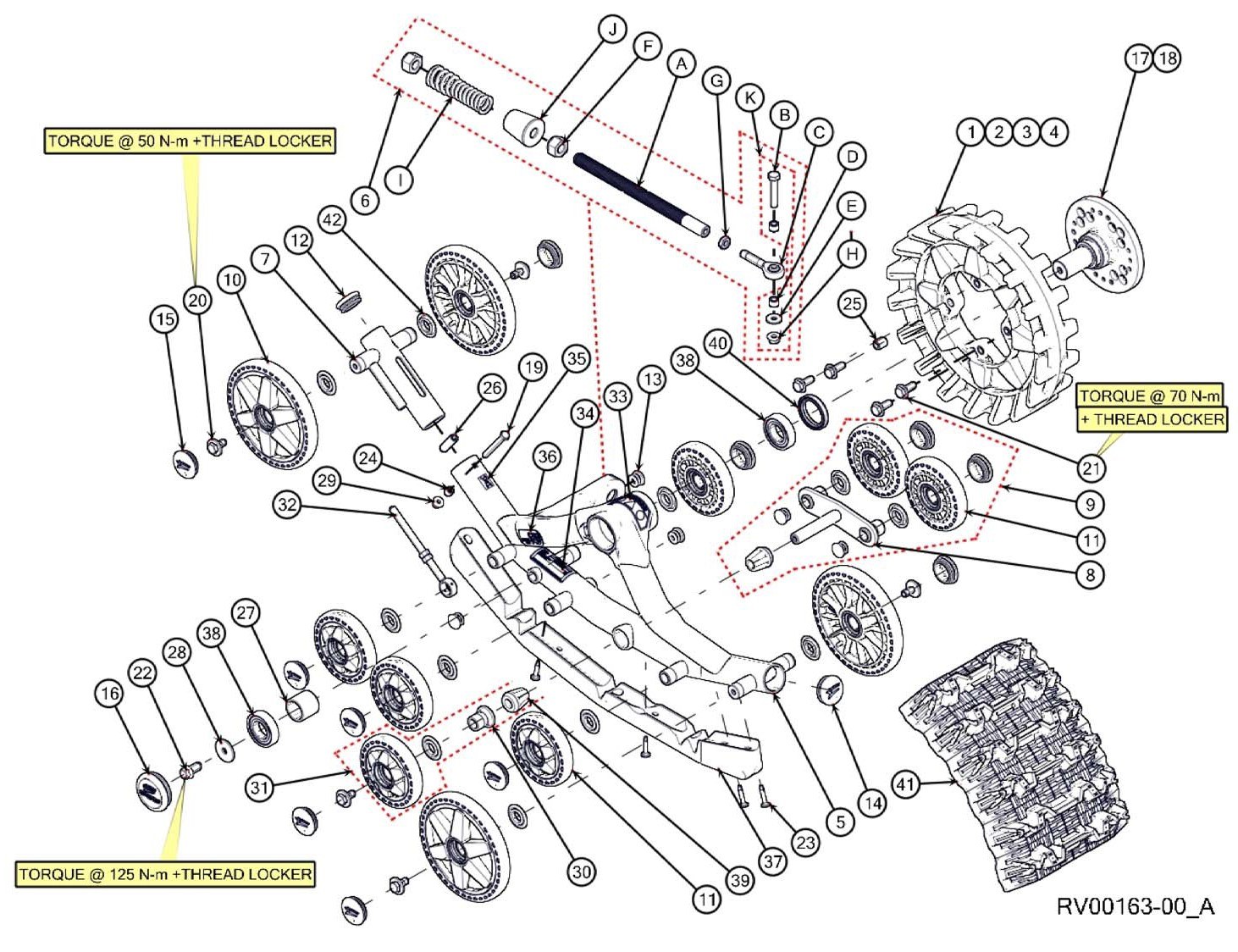

Keeping your 2012 T4S Front Left & Right performing at its peak means having access to the right replacement parts. This parts kit diagram shows every component available for your specific track system.

Kit Contents: S-KIT 15/4 SPROCKET, S-KIT 16/4 SPROCKET, S-KIT 17/4 SPROCKET, S-KIT 18/4 SPROCKET, S-KIT FRAME FR ATV 2012-2015, S-KIT FRAME FL ATV 2012-2015, Stabilizing rod assy (metric), ATV T4S Front Short Tensioner Kit 6622, Stabilizer replacement kit, Stabilizer assembly, REPLACEMENT WHEEL 201MM ASSEMBLY, Replacement wheel 133mm assembly, PLASTIC WHEEL CAP 1'', PLASTIC FRAME CAP 2'', WHEEL CAP 2'', HUB CAP CAMSO ASSEMBLY, S-KIT HUB MULTI POLARIS, S-KIT MULTI MODEL HUB, HCS,M8-1.25X80,10.9,ZP,DIN931, WHEEL HUB BOLT KIT - 125nm or 92ft lbs, SLIDE BUSHING, BUSHING 5/8" O.D. X 27/32" I.D. X 0.709" LG, TENSIONER BUSHING, INTERNAL SPACER, W, 1. 625,0.515,11 GA., FNN, M8-1.25, 8, ZP, DIN6926, WHEEL AXLE, STABILIZER, WHEEL AXE COMPLET KIT, TRACK TENSIONER ROD ASSEMBLY, STICKER WARNING, STICKER FRONT LEFT PICTOGRAM, STICKER FRONT RIGHT PICTOGRAM, STICKER - CAMOPLAST ATV MY2016, T4S/X4S ATV Front & Rear Hifax Guide, Top Hub Bearing ALL Camso ATV & UTVs, RUBBER CONE, DOUBLE LIPS SHAFT SEAL, TRACK 11.5" X 93.38" X 1.00" (9150S), THREADED ROD, STABILIZING ROD, HEX SCR, ISO 4014 (DIN 931), 10.9,YZN / M10X1.5X60, ROD END, STABILIZING ROD, ROD END SPACER, HEX NYLON INSERT, ISO 7040 (DIN 982), 8, YZN / M20X2.5, HEX THIN NUT, ISO 4035 (DIN 439), 8, YZN / M12X1.25, FNN, M10-1.5, 8, ZP, DI N6926, STABILIZING ROD SPRING 200 LBS/IN, RUBBER DAMPER, STABILIZING ROD SHORT BOLT KIT.
