2013 T4S Front Left & Right

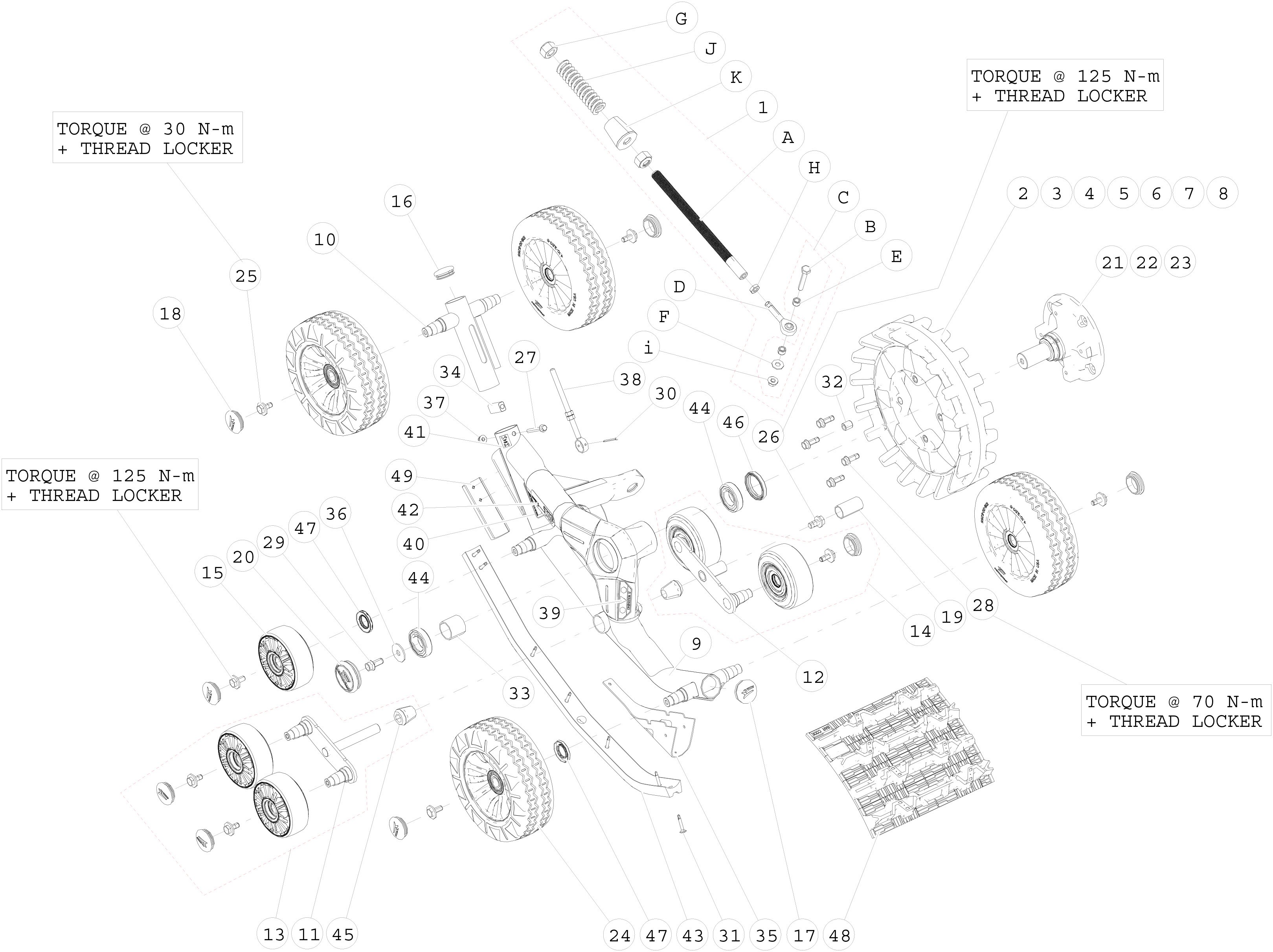

Keeping your 2013 T4S Front Left & Right performing at its peak means having access to the right replacement parts. This parts kit diagram shows every component available for your specific track system.

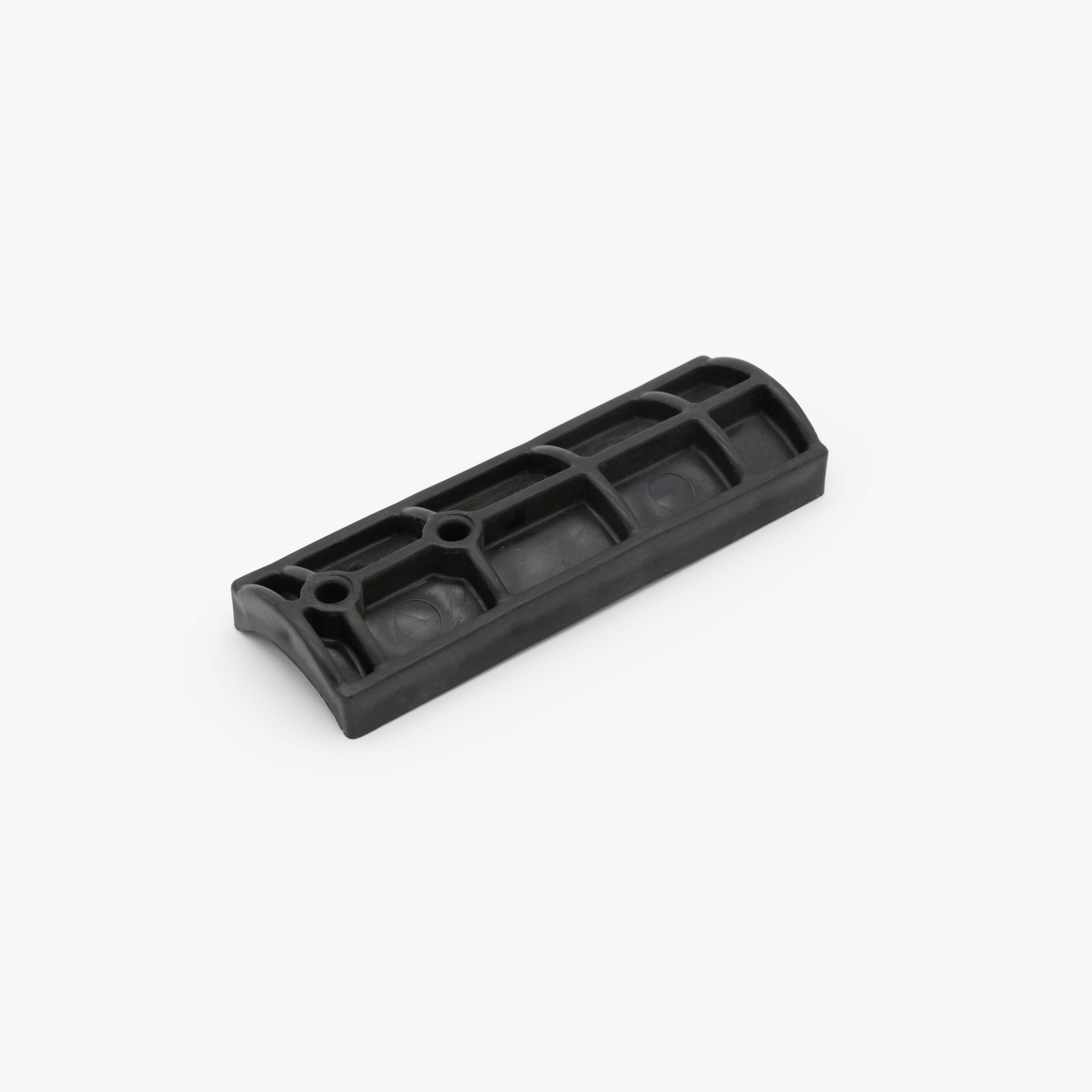

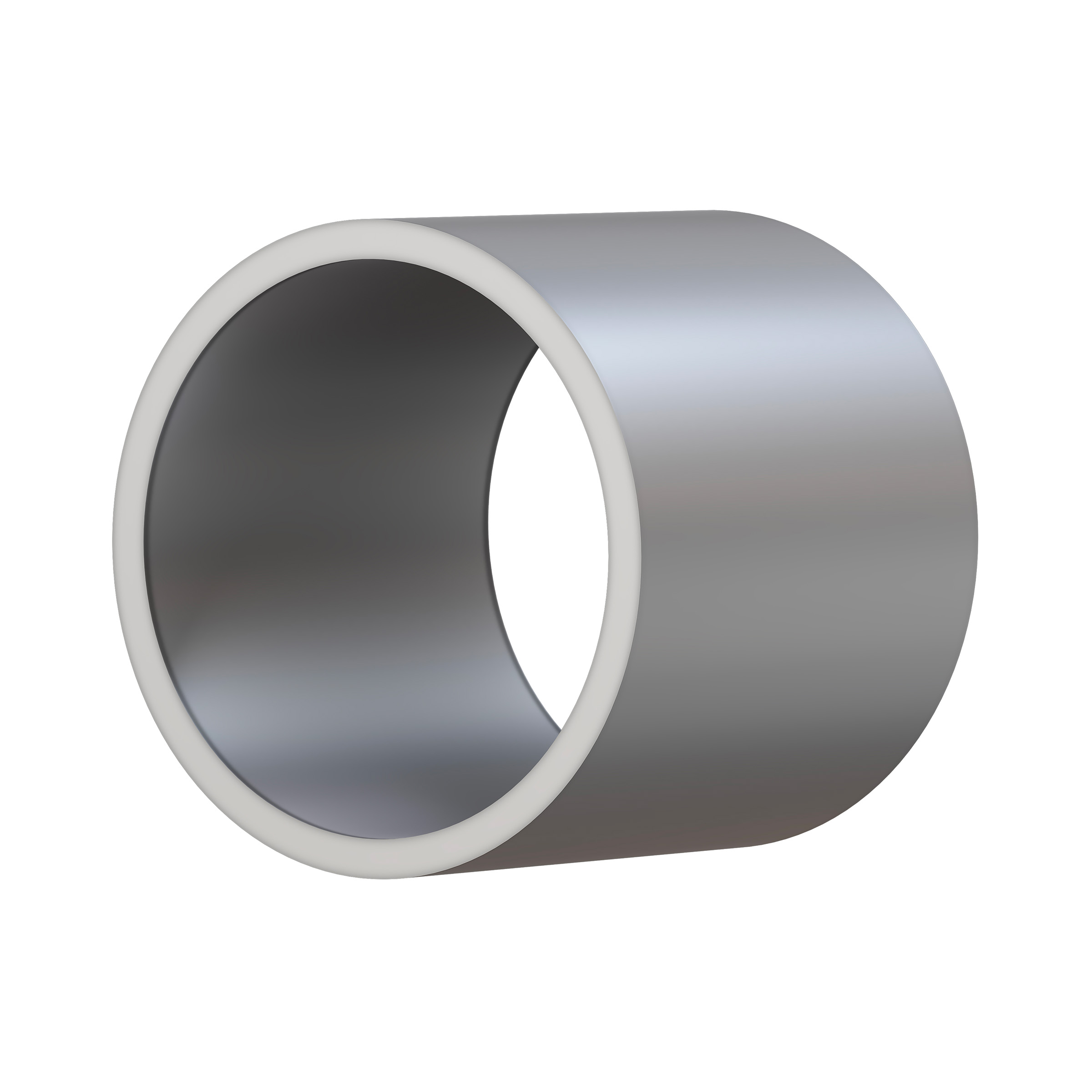

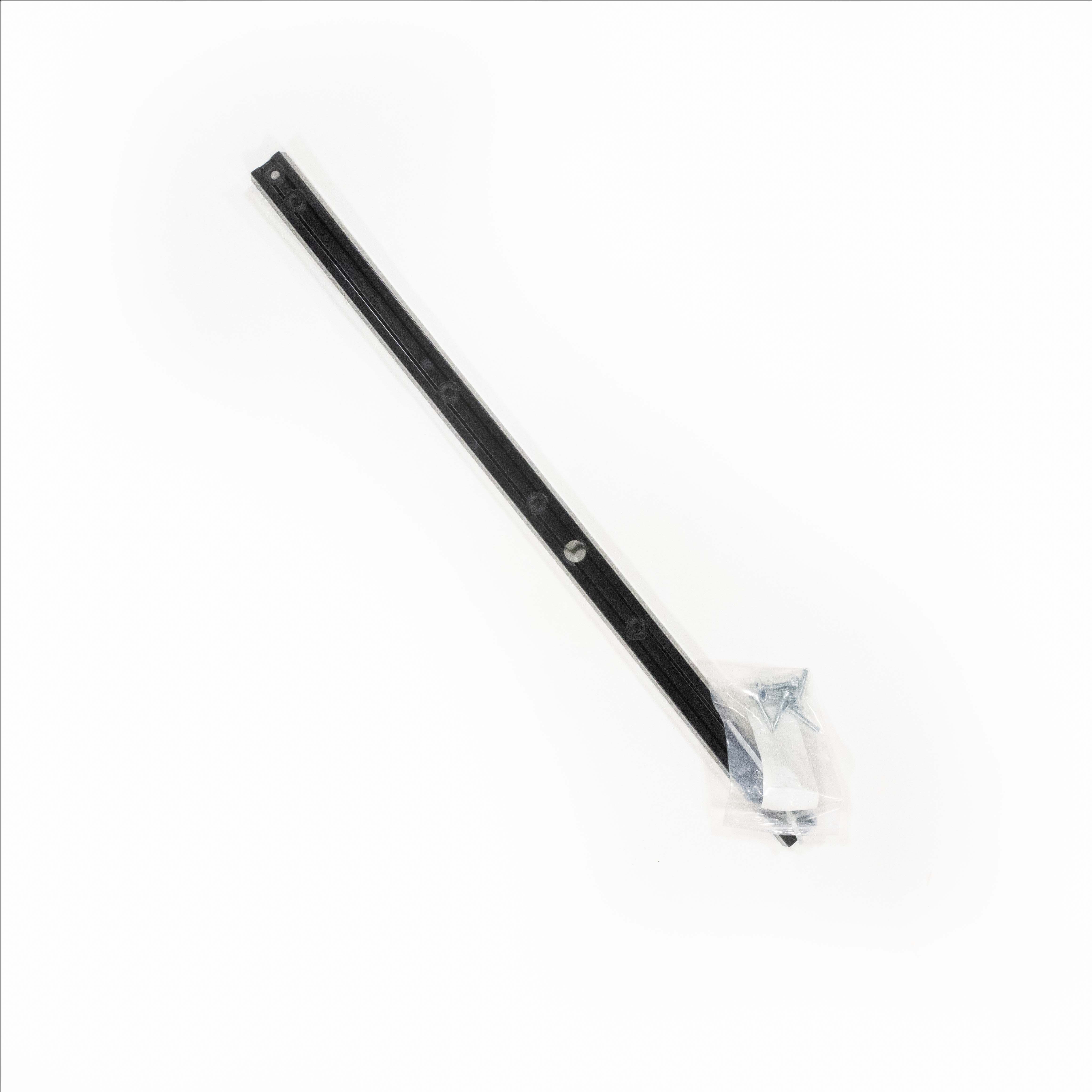

Kit Contents: Stabilizing rod ass'y, 370 LBS/IN, S-KIT 15/4 SPROCKET, S-KIT 16/4 SPROCKET, S-KIT 17/4 SPROCKET, S-KIT 18/4 SPROCKET, S-KIT 16/5 SPROCKET, S-KIT 17/5 SPROCKET, S-KIT 18/5 SPROCKET, S-KIT FRAME FR UTV 2014-2015, LH FRONT FRAME TATOU UTV 4S, TENSIONNER - UTV T4S, Black This part replaces 1014-00-B022., WIDE WHEEL STABILIZER MALE, WIDE WHEEL STABILIZER FEMALE, Wide wheel Stabilizer - male, WIDE WHEEL STABILIZER FEMALE, S-KIT REPLACEMENT WHEEL, PLASTIC FRAME CAP 2'', WHEEL CAP 2'', DUST CAP STABILIZER, HUB CAP CAMSO ASSEMBLY, S-KIT HUB MULTI POLARIS, S-KIT HUB 5 BOLTS, Wheel (4.10/3.50-6) gray assy, HEX SCR W/ WASH 25X3, 10.9, YP, TL 9S-1026 / M12X1.75X25, WHEEL HUB BOLT KIT, CP, 1/8,1-3/4, ZP, BUSHING 5/8" O.D. X 27/32" I.D. X 0.709" LG, INTERNAL SPACER, S-KIT TENSIONER BUSHING, UTV FOOT SHIM, W, 1. 625,0.515,11 GA., FNN, M8-1.25, 8, ZP, DIN6926, TRACK TENSIONER ROD ASSEMBLY, STICKER WARNING, STICKER FRONT LEFT PICTOGRAM, STICKER FRONT RIGHT PICTOGRAM, STICKER - CAMOPLAST UTV MY2016, TRACK GUIDE FRONT -UTV T4S, Top Hub Bearing ALL Camso ATV & UTVs, RUBBER CONE, DOUBLE LIPS SHAFT SEAL, SHAFT SEAL (28 X 48 X 6 TC), Track - UTV front (9275S), UTV TRACK GUIDE SPACER, THREADED ROD, STABILIZING ROD, HEX SCR, ISO 4014 (DIN 931), 10.9,YZN / M10X1.5X60, STABILIZING ROD SHORT BOLT KIT, ROD END, STABILIZING ROD, HEX NYLON INSERT, ISO 7040 (DIN 982), 8, YZN / M20X2.5, HEX THIN NUT, ISO 4035 (DIN 439), 8, YZN / M12X1.25, FNN, M10-1.5, 8, ZP, DI N6926, 370 LBS/IN COMPRESSION SPRING.
