2014 T4S Left & Right Rear

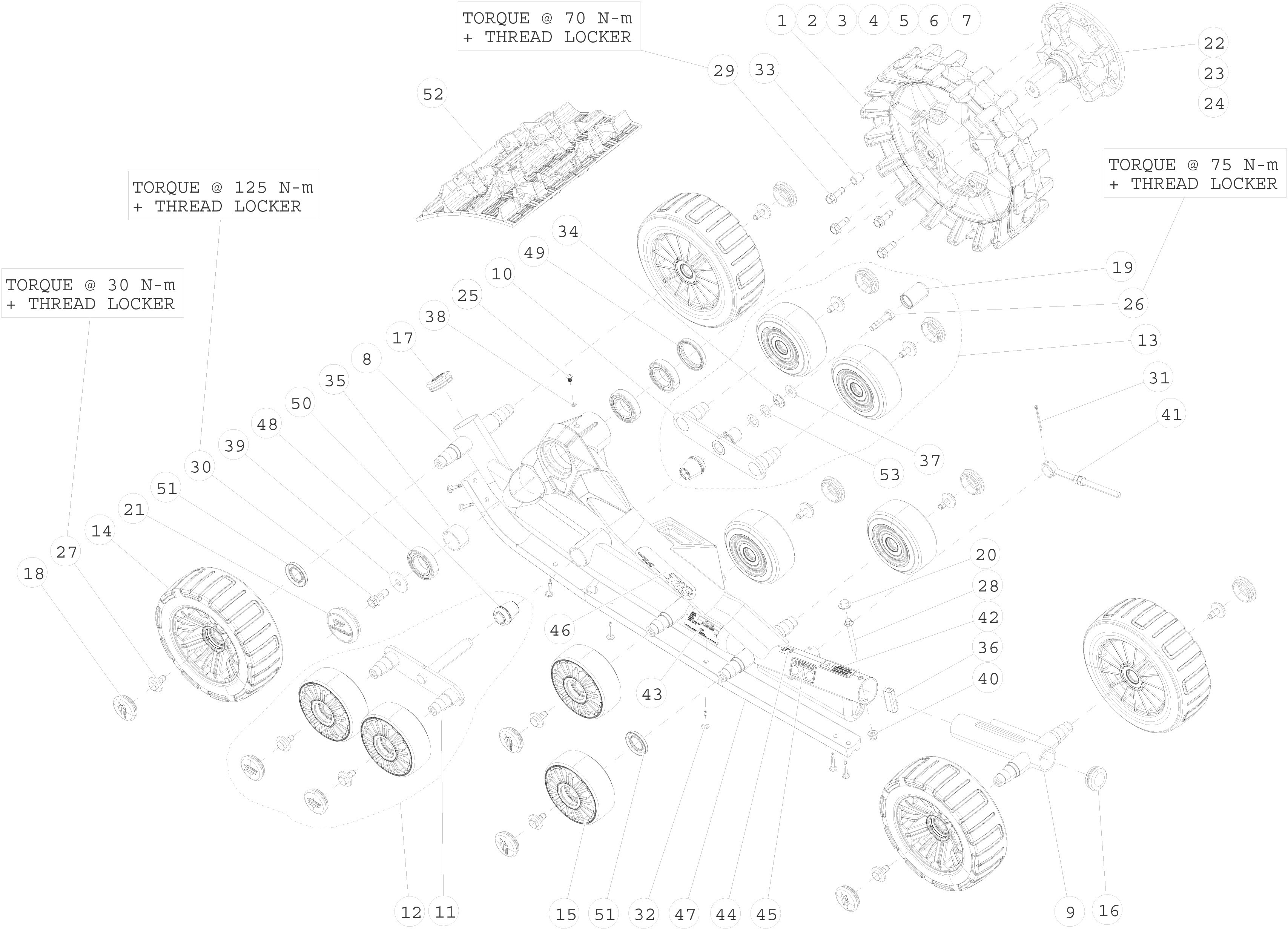

Keeping your 2014 T4S Left & Right Rear performing at its peak means having access to the right replacement parts. This parts kit diagram shows every component available for your specific track system.

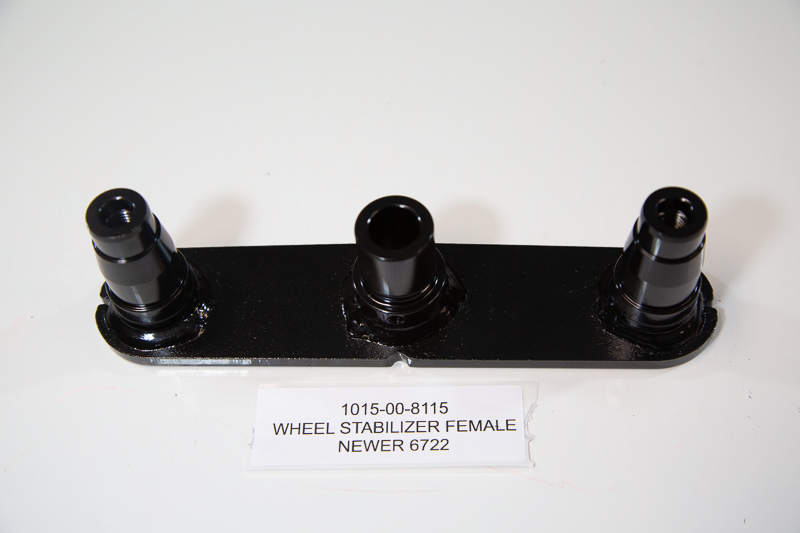

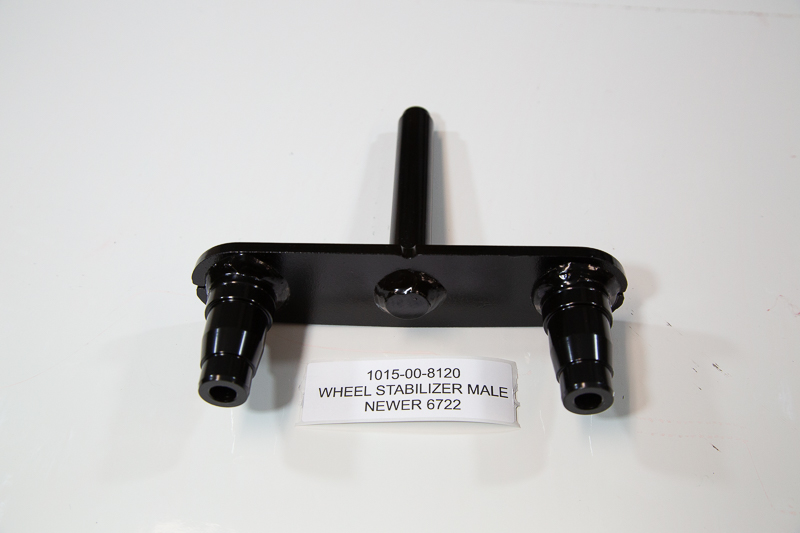

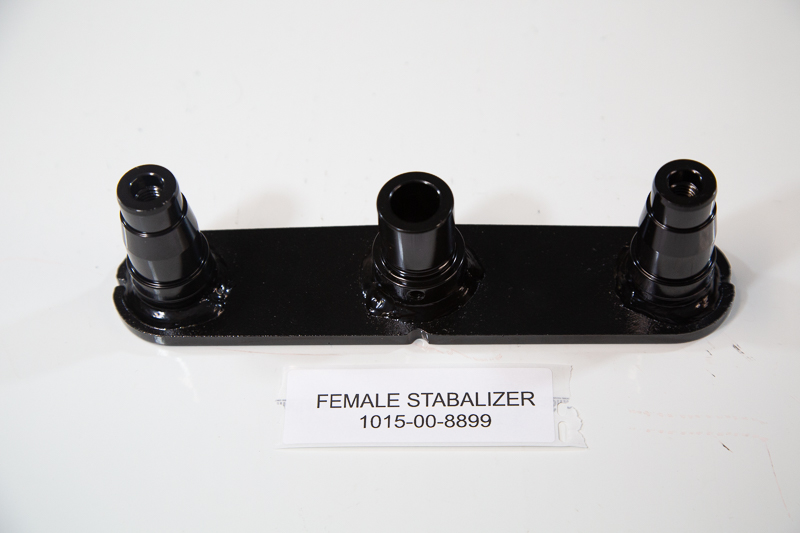

Kit Contents: S-KIT 15/4 SPROCKET, S-KIT 16/4 SPROCKET, S-KIT 17/4 SPROCKET, S-KIT 18/4 SPROCKET, S-KIT 16/5 SPROCKET, S-KIT 17/5 SPROCKET, S-KIT 18/5 SPROCKET, S-KIT FRAME RR UTV 2014-2015, S-KIT FRAME RL UTV 2014-2015, TENSIONNER - UTV T4S, Black This part replaces 1014-00-B022., WIDE WHEEL STABILIZER FEMALE, WIDE WHEEL STABILIZER MALE, Wide wheel Stabilizer male ass'y, WIDE WHEEL STABILIZER FEMALE ASSEMBLY, UTV Larger Bogey Wheel, UTV Small Bogey Wheel, PLASTIC FRAME CAP 2'', WHEEL CAP 2'', DUST CAP STABILIZER, Cap nut, HUB CAP CAMSO ASSEMBLY, S-KIT HUB MULTI POLARIS, S-KIT HUB 5 BOLTS, S-KIT MULTI MODEL HUB, HSBS, M6-1X10, 10.9, ZP, WHEEL HUB BOLT KIT - 125nm or 92ft lbs, CP, 1/8,1-3/4, ZP, BUSHING 5/8" O.D. X 27/32" I.D. X 0.709" LG, TANDEM BUSHING, INTERNAL SPACER -UTV, S-KIT TENSIONER BUSHING, W, 1. 625,0.515,11 GA., FNN, M8-1.25, 8, ZP, DIN6926, TRACK TENSIONER ROD ASSEMBLY, STICKER DO NOT LOOSEN, STICKER REAR LEFT PICTOGRAM, STICKER REAR RIGHT PICTOGRAM, STICKER WARNING, STICKER - CAMOPLAST UTV MY2016, T4S UTV 6822/6722 Rear Guide, Top Hub Bearing ALL Camso ATV & UTVs, URETHANE CONE, STABILIZER, SHAFT SEAL (28 X 48 X 6 TC), REAR TRACK -UTV T(9132S), TW, LX0.625X0.62.
