2013 T4S Rear Left & Right

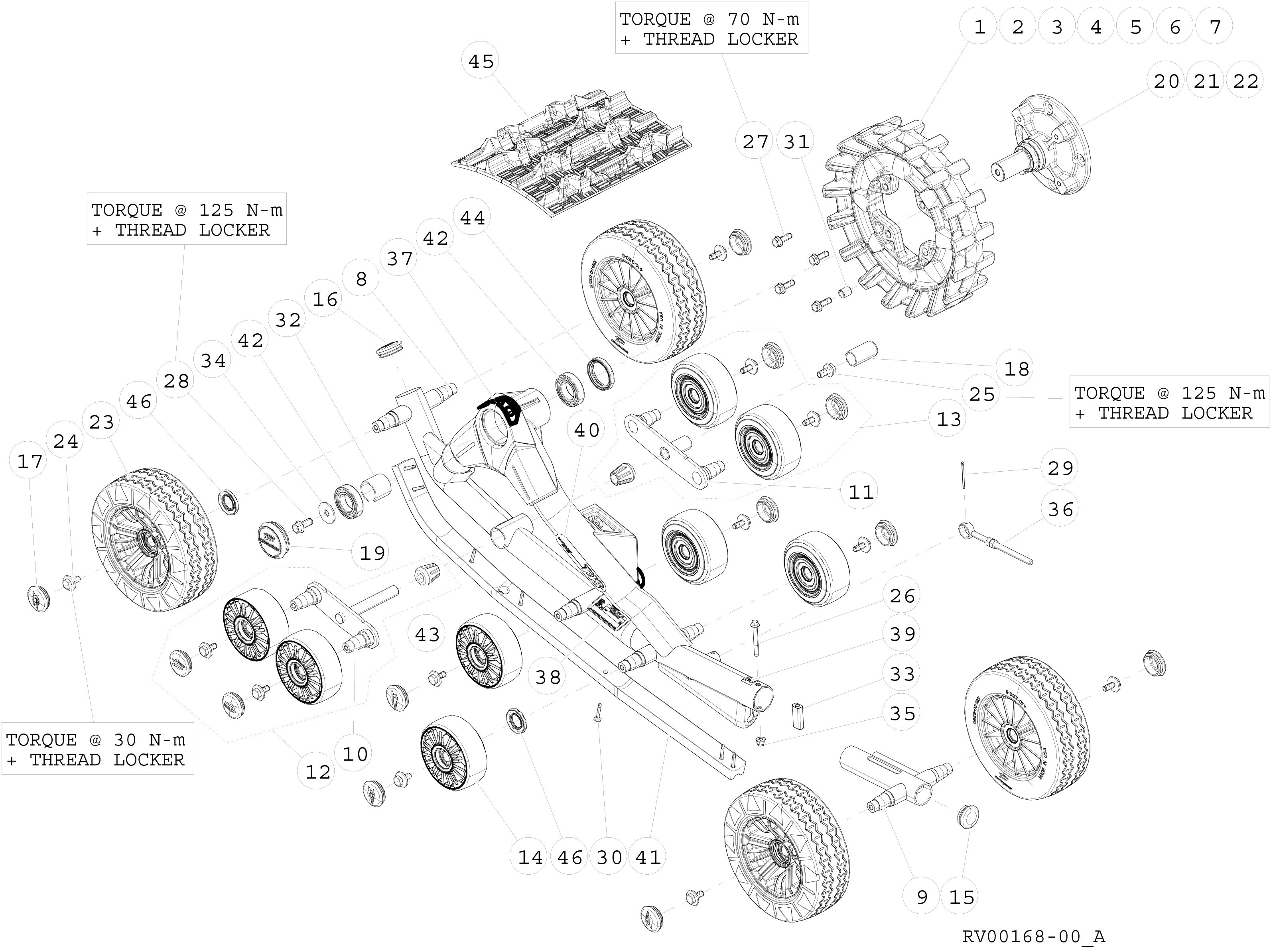

Keeping your 2013 T4S Rear Left & Right performing at its peak means having access to the right replacement parts. This parts kit diagram shows every component available for your specific track system.

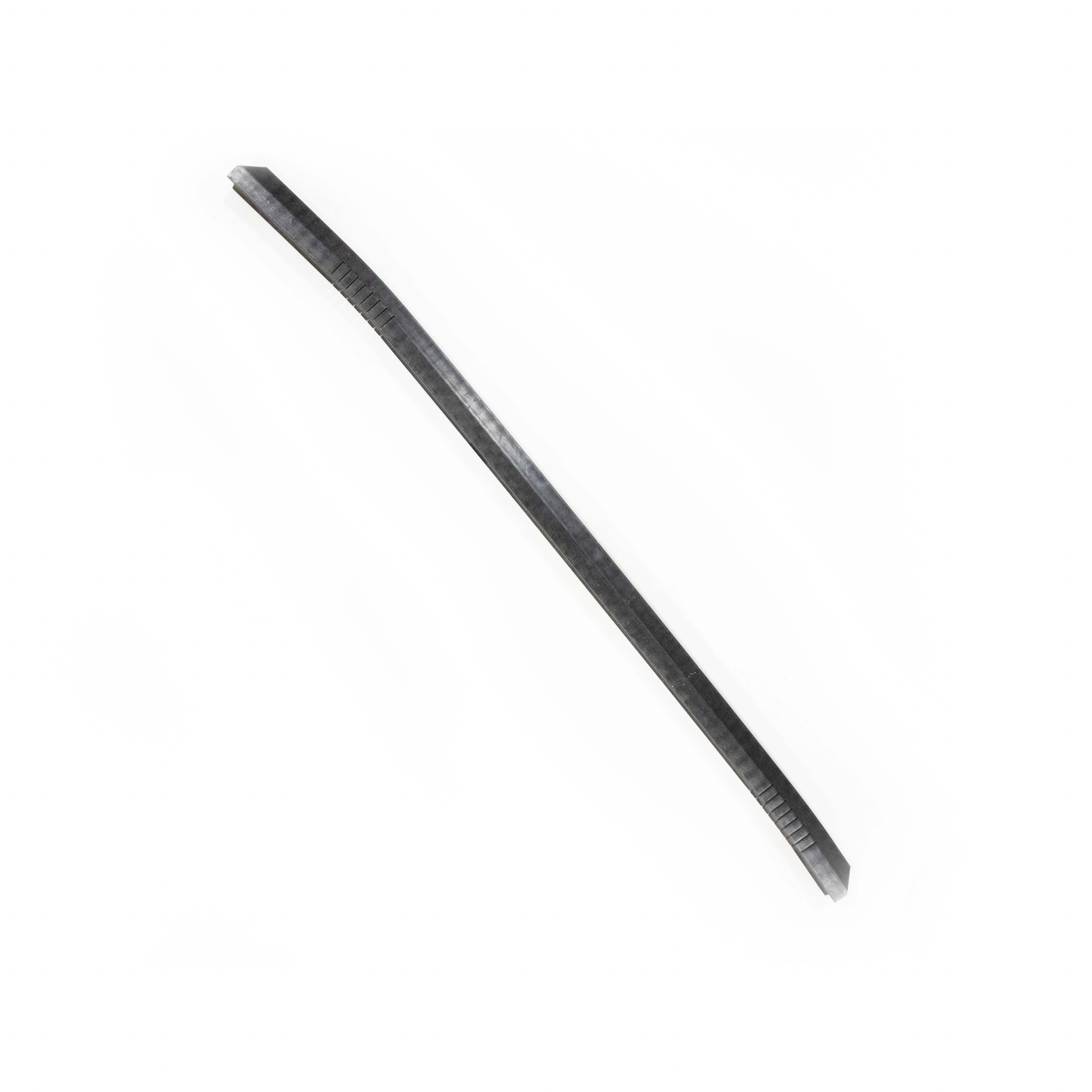

Kit Contents: S-KIT 15/4 SPROCKET, S-KIT 16/4 SPROCKET, S-KIT 17/4 SPROCKET, S-KIT 18/4 SPROCKET, S-KIT 16/5 SPROCKET, S-KIT 17/5 SPROCKET, S-KIT 18/5 SPROCKET, S-KIT FRAME RR UTV 2014-2015, S-KIT FRAME RL UTV 2014-2015, TENSIONNER - UTV T4S, Black This part replaces 1014-00-B022., WIDE WHEEL STABILIZER MALE, WIDE WHEEL STABILIZER FEMALE, Wide wheel Stabilizer - male, WIDE WHEEL STABILIZER FEMALE, UTV Small Bogey Wheel, PLASTIC FRAME CAP 2'', WHEEL CAP 2'', DUST CAP STABILIZER, HUB CAP CAMSO ASSEMBLY, S-KIT HUB MULTI POLARIS, S-KIT HUB 5 BOLTS, S-KIT MULTI MODEL HUB, Wheel (4.10/3.50-6) gray assy, HEX SCR W/ WASH 25X3, 10.9, YP, TL 9S-1026 / M12X1.75X25, WHEEL HUB BOLT KIT - 125nm or 92ft lbs, CP, 1/8,1-3/4, ZP, BUSHING 5/8" O.D. X 27/32" I.D. X 0.709" LG, INTERNAL SPACER, S-KIT TENSIONER BUSHING, W, 1. 625,0.515,11 GA., FNN, M8-1.25, 8, ZP, DIN6926, TRACK TENSIONER ROD ASSEMBLY, STICKER WARNING, STICKER REAR LEFT PICTOGRAM, STICKER REAR RIGHT PICTOGRAM, STICKER - CAMOPLAST UTV MY2016, TRACK GUIDE REAR-UTV T4S, Top Hub Bearing ALL Camso ATV & UTVs, RUBBER CONE, REAR TRACK -UTV T(9132S), SHAFT SEAL (28 X 48 X 6 TC).
