2013 T4S Rear Left & Right

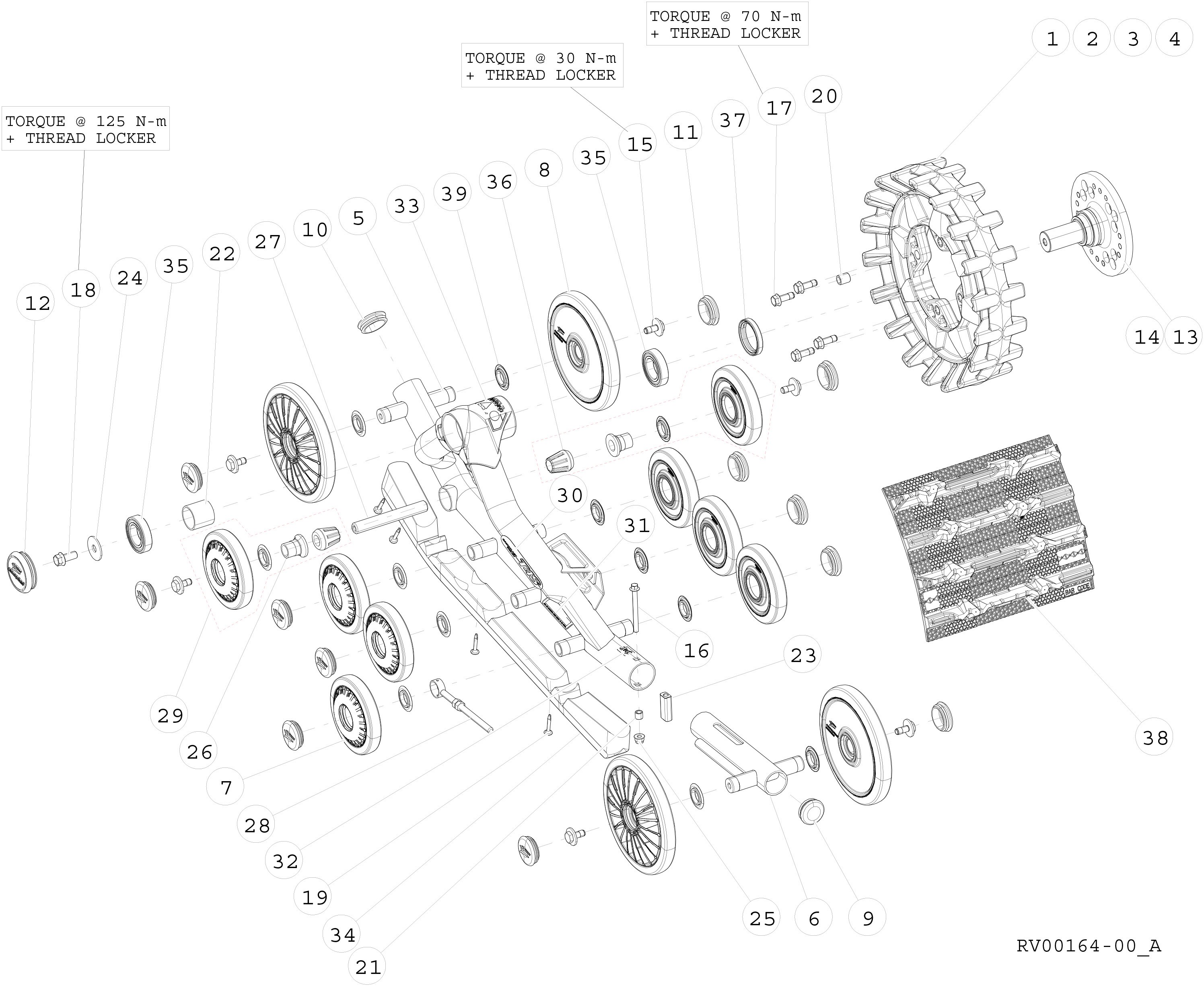

Keeping your 2013 T4S Rear Left & Right performing at its peak means having access to the right replacement parts. This parts kit diagram shows every component available for your specific track system.

Kit Contents: S-KIT 15/4 SPROCKET, S-KIT 16/4 SPROCKET, S-KIT 17/4 SPROCKET, S-KIT 18/4 SPROCKET, S-KIT FRAME RR ATV 2012-2015, S-KIT FRAME RL ATV 2012-2015, ATV T4S Rear Long Tensioner Kit 6622, ATV T4S Smaller Bogey Wheel, ATV T4S Larger Bogey Wheel, PLASTIC FRAME CAP 2'', WHEEL CAP 2'', HUB CAP CAMSO ASSEMBLY, S-KIT HUB MULTI POLARIS, S-KIT MULTI MODEL HUB, WHEEL HUB BOLT KIT - 125nm or 92ft lbs, BUSHING 5/8" O.D. X 27/32" I.D. X 0.709" LG, SLIDE BUSHING, INTERNAL SPACER, TENSIONER BUSHING, W, 1. 625,0.515,11 GA., FNN, M8-1.25, 8, ZP, DIN6926, WHEEL AXLE, STABILIZER, AXLE, REAR STABILIZER, TRACK TENSIONER ROD ASSEMBLY, WHEEL AXLE ASSEMBLY, STICKER - CAMOPLAST ATV MY2016, STICKER REAR LEFT PICTOGRAM, STICKER REAR RIGHT PICTOGRAM, STICKER WARNING, T4S/X4S ATV Front & Rear Hifax Guide, Top Hub Bearing ALL Camso ATV & UTVs, RUBBER CONE, DOUBLE LIPS SHAFT SEAL, TRACK 12.5" X 98.57" X 1.188" (91005).
