2008 Tatou Original Rear Rigid suspension UTV 2007-less

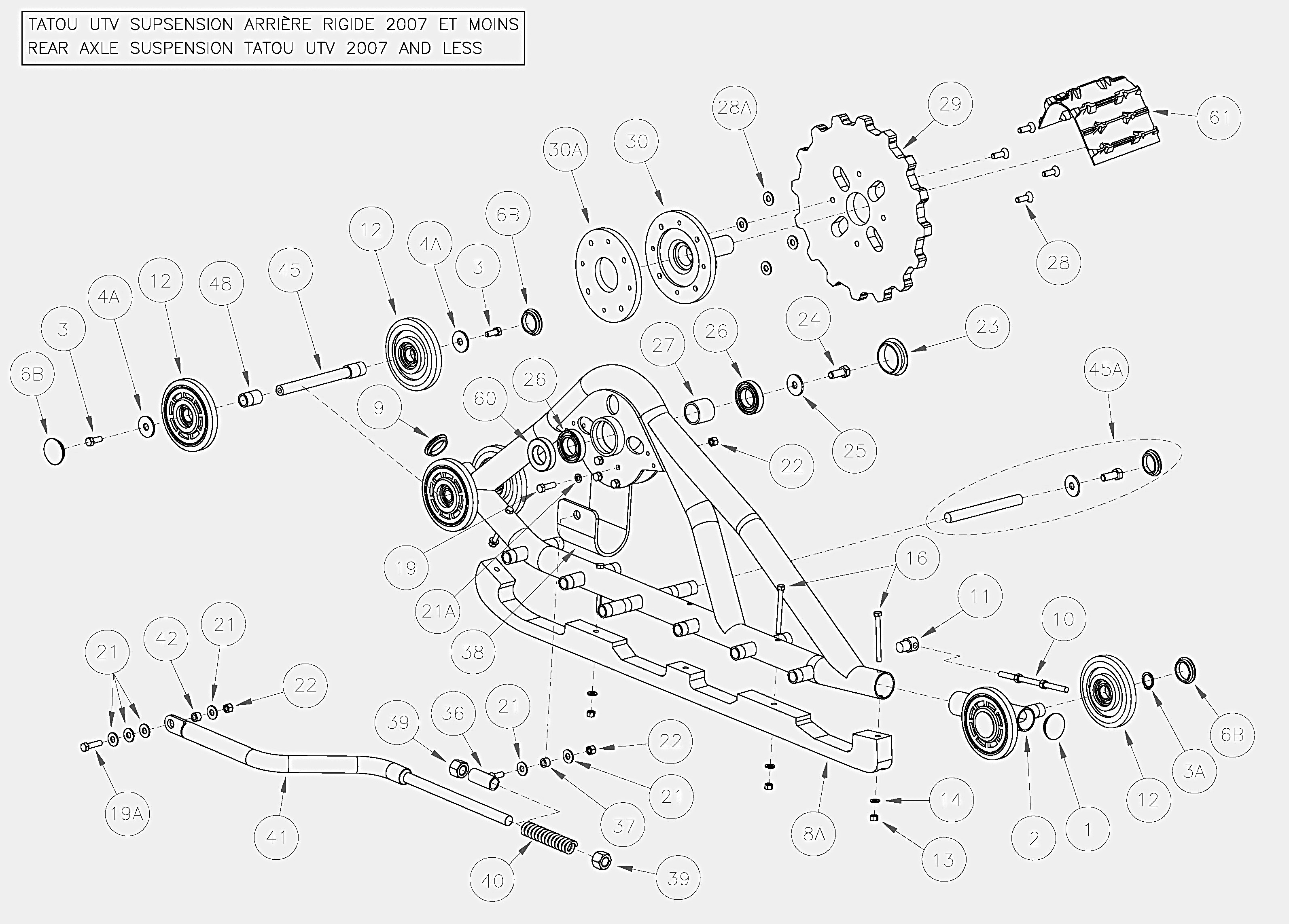

Keeping your 2008 Tatou Original Rear Rigid suspension UTV 2007-less performing at its peak means having access to the right replacement parts. This parts kit diagram shows every component available for your specific track system.

Kit Contents: FRAME TAIL PLASTIC CAP, S-kit - tensionner Tatou 4S, Hexagon Head Bolt M8X1.25X20, Snap Ring Tail (1400-100), FW,0.340x1.25x0.062,ZP, W,0.380x1.50x0.112,8,ZP, WHEEL CAP, 1-3/4" HOLE, Rear right frame 116 - silver, Rear left frame 116 - silver, Track guide kit - UTV original 116, PLASTIC FRAME CAP 2'', Adjustment Rod, Aluminium Holder, 132 MM RUBBERIZED UHMW WHEEL, NYLON LOCKNUTS 5/16-18 UNC, W, 11/16X11 / 32X0.060, 8, ZP, SAE, HEX.HEAD.SCR. 5/16-18 NC X 3" L., HEX.HEAD.SCR. 3/8-16 NC X 1-1/4" L., W, 7/16X1.0X0.072, 8, ZP, USS, W,3/8x5/8x0.065,ZP, NYLON LOCKNUTS 3/8-16 UNC, HUB CAP CAMSO ASSEMBLY, HEX.HEAD.SCR. 1/2-13 NC X 1-1/4" L., W, 1. 625,0.515,11 GA., Top Hub Bearing ALL Camso ATV & UTVs, INTERNAL SPACER, HSFS,3/8-16x1.25,5, ZP, Sprocket 16 teeth -5 bolts, S-kit - hub multi - retrofit, S-KIT HUB MULTI POLARIS, S-kit - hub 5 bolts - retrofit, STABILIZING ARM GUIDE ASS (SERVICE PART), BUSHING 1/4 0,390ID X 0,6250D X 0,280L, Rear Plates ''J'' 4'', NYLON LOCKNUTS 3/4-10 UNC, Stabilising Rod Spring kit 116, ROD END SPACER, WHEEL SHAFT HW IS, 1'' MACHINE TUBE, Wheel holder kit 9 1/2, DOUBLE LIPS SHAFT SEAL, Track - UTV original rear (9051S).
