2011 TATOU 4S Rear Left & Right

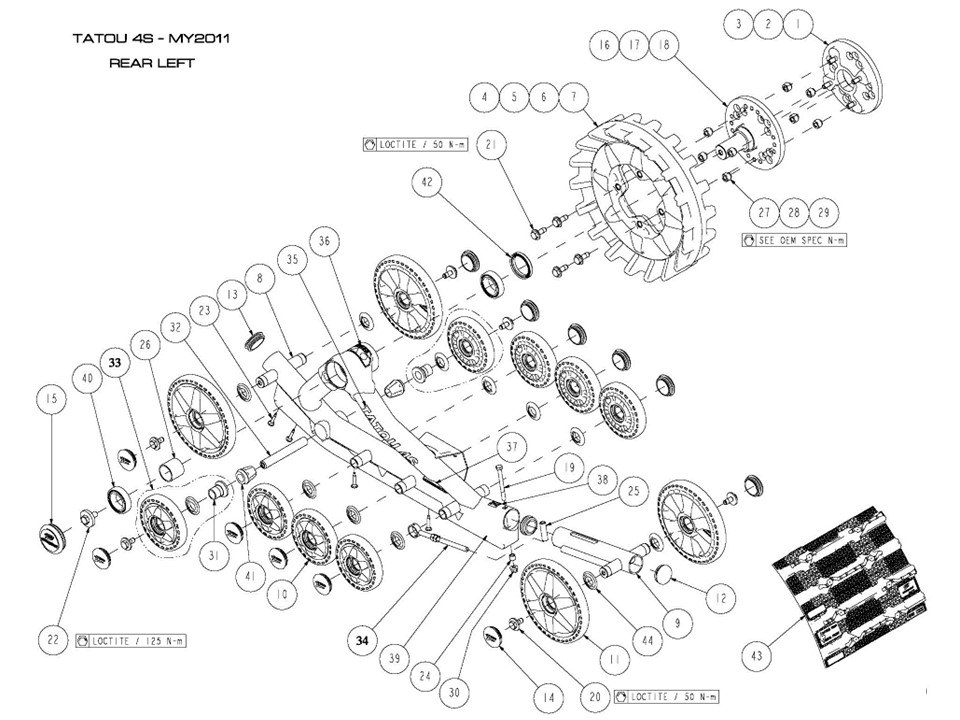

Keeping your 2011 TATOU 4S Rear Left & Right performing at its peak means having access to the right replacement parts. This parts kit diagram shows every component available for your specific track system.

Kit Contents: MULTI HUB SPACER 1-1/8" ASSEMBLY (METRIC), Multi hub spacer, 2'', MULTI HUB SPACER 4" ASSEMBLY (METRIC), S-KIT 15/4 SPROCKET, S-KIT 16/4 SPROCKET, S-KIT 17/4 SPROCKET, S-KIT 18/4 SPROCKET, S-KIT FRAME RR ATV 2012-2015, S-KIT FRAME RL ATV 2012-2015, ATV T4S Rear Long Tensioner Kit 6622, Replacement wheel 133mm assembly, REPLACEMENT WHEEL 201MM ASSEMBLY, FRAME TAIL PLASTIC CAP, PLASTIC FRAME CAP 2'', WHEEL CAP 2'', HUB CAP CAMSO ASSEMBLY, S-KIT HUB MULTI POLARIS, S-KIT MULTI MODEL HUB, S-KIT MULTI MODEL HUB, HCS,M8-1.25X80,10.9,ZP,DIN931, UTV/ATV Bogey Wheels Bolt & Washer: 10mm-1.25x25, Grade 8.8, 30nm or 22ft lbs, UTV/ATV 10mm-1.5x30, Drive Gear Bolt, Torque: 70nm or 52ft lbs, WHEEL HUB BOLT KIT - 125nm or 92ft lbs, SDSQWS, #12-24X1.5, ZP, SLIDE BUSHING, TENSIONER BUSHING, INTERNAL SPACER, LN,M10-1.25X20,8,ZP, FLANGE LOCKNUT 3/8-24, HEX FLANGE SERRATED NUT, 8, YZN / M10X1.25, FNN, M8-1.25, 8, ZP, DIN6926, WHEEL AXLE, STABILIZER, AXLE, REAR STABILIZER, 132mm wheel, seal, wheel axe, assembly, TRACK TENSIONER ROD ASSEMBLY, STICKER TATOU DECAL, STICKER WARNING, STICKER REAR RIGHT PICTOGRAM, TRACK GUIDE TATOU 4S, Top Hub Bearing ALL Camso ATV & UTVs, RUBBER CONE, DOUBLE LIPS SHAFT SEAL, TRACK 12.5" X 98.57" X 1.188" (91005), ATV Wheel Seal.
