2010 TATOU 4S Rear Left

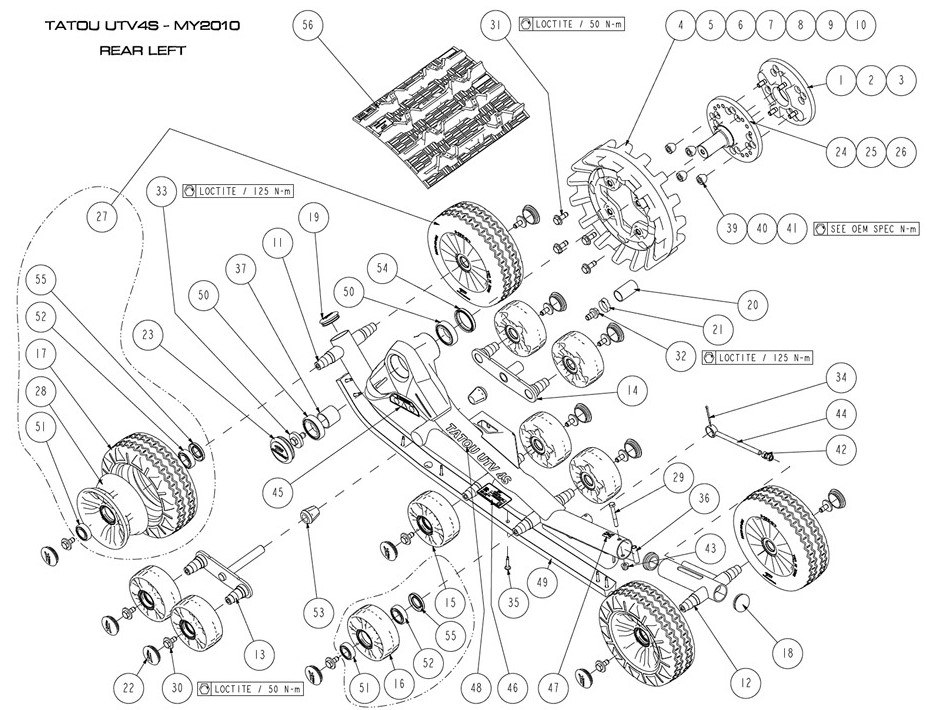

Keeping your 2010 TATOU 4S Rear Left performing at its peak means having access to the right replacement parts. This parts kit diagram shows every component available for your specific track system.

Kit Contents: MULTI HUB SPACER 1-1/8" ASSEMBLY (METRIC), Multi hub spacer, 2'', MULTI HUB SPACER 4" ASSEMBLY (METRIC), S-KIT 15/4 SPROCKET, S-KIT 16/4 SPROCKET, S-KIT 17/4 SPROCKET, S-KIT 18/4 SPROCKET, S-KIT 16/5 SPROCKET, S-KIT 17/5 SPROCKET, S-KIT 18/5 SPROCKET, S-KIT FRAME RR UTV 2014-2015, S-KIT FRAME RL UTV 2014-2015, S-KIT UTV Tensioner This part replaces 7014-00-B022., WIDE WHEEL STABILIZER MALE, WIDE WHEEL STABILIZER FEMALE, UTV Small Bogey Wheel, PLASTIC FRAME CAP 2'', DUST CAP STABILIZER, Nylon TY-RAP - 14.5IN, WHEEL CAP 2'', HUB CAP CAMSO ASSEMBLY, S-KIT HUB MULTI POLARIS, S-KIT HUB 5 BOLTS, S-KIT MULTI MODEL HUB, Wheel (4.10/3.50-6) gray assy, HCS,M8-1.25X60,10.9,ZP,DIN931, UTV/ATV 10mm-1.5x30, Drive Gear Bolt, Torque: 70nm or 52ft lbs, HEX SCR W/ WASH 25X3, 10.9, YP, TL 9S-1026 / M12X1.75X25, WHEEL HUB BOLT KIT - 125nm or 92ft lbs, CP, 1/8,1-3/4, ZP, S-KIT TENSIONER BUSHING, INTERNAL SPACER, LN,M10-1.25X20,8,ZP, HEX NUT M12-1.5 TAPER, 8, YZN, HEX NUT M12-1.25 TAPER, 8, YZN, HEX NUT 8.8 CLE 14 YZN / M10X1.5, FNN, M8-1.25, 8, ZP, DIN6926, TRACK TENSIONER ROD ASSEMBLY, STICKER WARNING, STICKER REAR LEFT PICTOGRAM, STICKER REAR RIGHT PICTOGRAM, STICKER TATOU DECAL, T4S UTV 6822/6722 Rear Guide, Top Hub Bearing ALL Camso ATV & UTVs, Outer UTV 4S1/T4S & Inner ATV/UTV X4S Bogey Wheel Bearing, Inner UTV 4S1/T4S Bogey Wheel Bearing, RUBBER CONE, DOUBLE LIPS SHAFT SEAL, SHAFT SEAL (28 X 48 X 6 TC), REAR TRACK -UTV T(9132S).
