2002 Tatou Original Rear Independent suspension UTV 2008-more

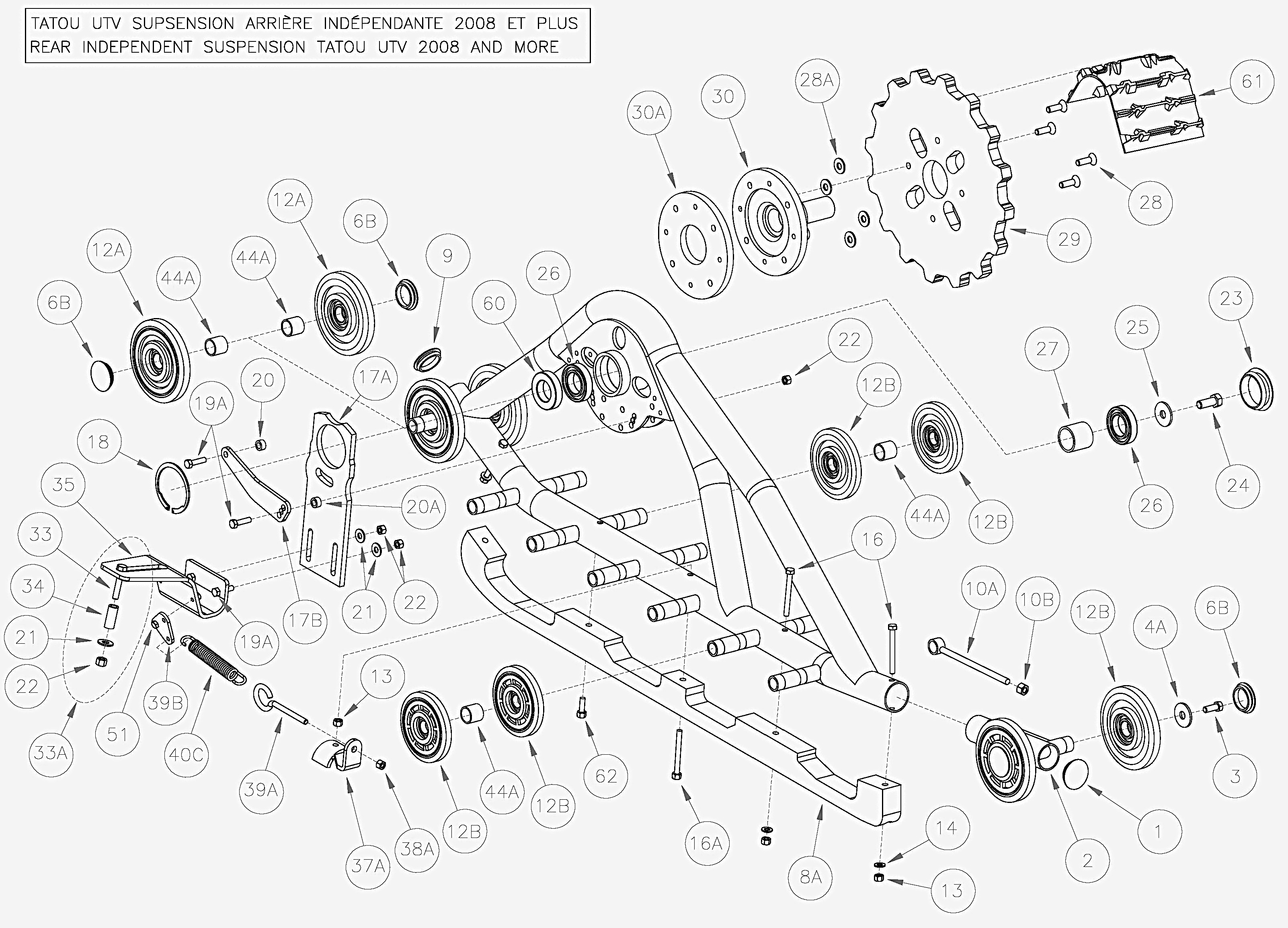

Keeping your 2002 Tatou Original Rear Independent suspension UTV 2008-more performing at its peak means having access to the right replacement parts. This parts kit diagram shows every component available for your specific track system.

Kit Contents: FRAME TAIL PLASTIC CAP, S-kit - tensionner Tatou 4S, HEX.HEAD.SCR. 3/8-16 NC X 1" L., WASHER / RONDELLE -- 3/8X1-1/4, 0.120, ZP, W,0.380x1.50x0.112,8,ZP, WHEEL CAP, 1-3/4" HOLE, Rear right frame 116 - silver, Rear left frame 116 - silver, Track guide kit - UTV original 116, PLASTIC FRAME CAP 2'', TRACK TENSIONER ROD ASSEMBLY, NYLON LOCKNUTS 7/16-14 UNC, Frame wheel 165mm (R0165K-1 001A), 132 MM RUBBERIZED UHMW WHEEL, NYLON LOCKNUTS 5/16-18 UNC, W, 11/16X11 / 32X0.060, 8, ZP, SAE, HEX.HEAD.SCR. 5/16-18 NC X 3" L., HCS,5/16-18x3.50,5,ZP,UNC, Rear Rocking Plates Independant.Susp., Pivot Plate Reinforcement, Snap Ring Standard (1400-287) 2 7/8, HEX.HEAD.SCR. 3/8-16 NC X 1-1/4" L., BUSHING 5/16 0,410ID X 0,625OD X 0,340L, Bushing 0,750od X 0,382id X 0,322L, W, 7/16X1.0X0.072, 8, ZP, USS, NYLON LOCKNUTS 3/8-16 UNC, HUB CAP CAMSO ASSEMBLY, HEX.HEAD.SCR. 1/2-13 NC X 1-1/4" L., W, 1. 625,0.515,11 GA., Top Hub Bearing ALL Camso ATV & UTVs, INTERNAL SPACER, HSFS,3/8-16x1.25,5, ZP, Sprocket 16 teeth -5 bolts, S-kit - hub multi - retrofit, S-KIT HUB MULTI POLARIS, S-kit - hub 5 bolts - retrofit, HCS,3/8-16x2.50,5,ZP,UNC, BUSHING PLAIN1 1/2 0,390IDX0,625ODX1,500L, Standard pivot limitor, Right Independent Suspension Bracket, Left Independent Suspension Bracket, EY,5/16-18x2.00,0.5IDx3.25,5,ZP, Spring Holder, Extension Spring UTV, Short Bushing 116PVC 1'' SHC 40 X 1,346L, HCS,1/4-20x0.75,5,ZP,UNC, DOUBLE LIPS SHAFT SEAL, Track - UTV original rear (9051S), SDHWS,3/8-16x1.00,5,ZP.
