2024 T4S Front Left & Right

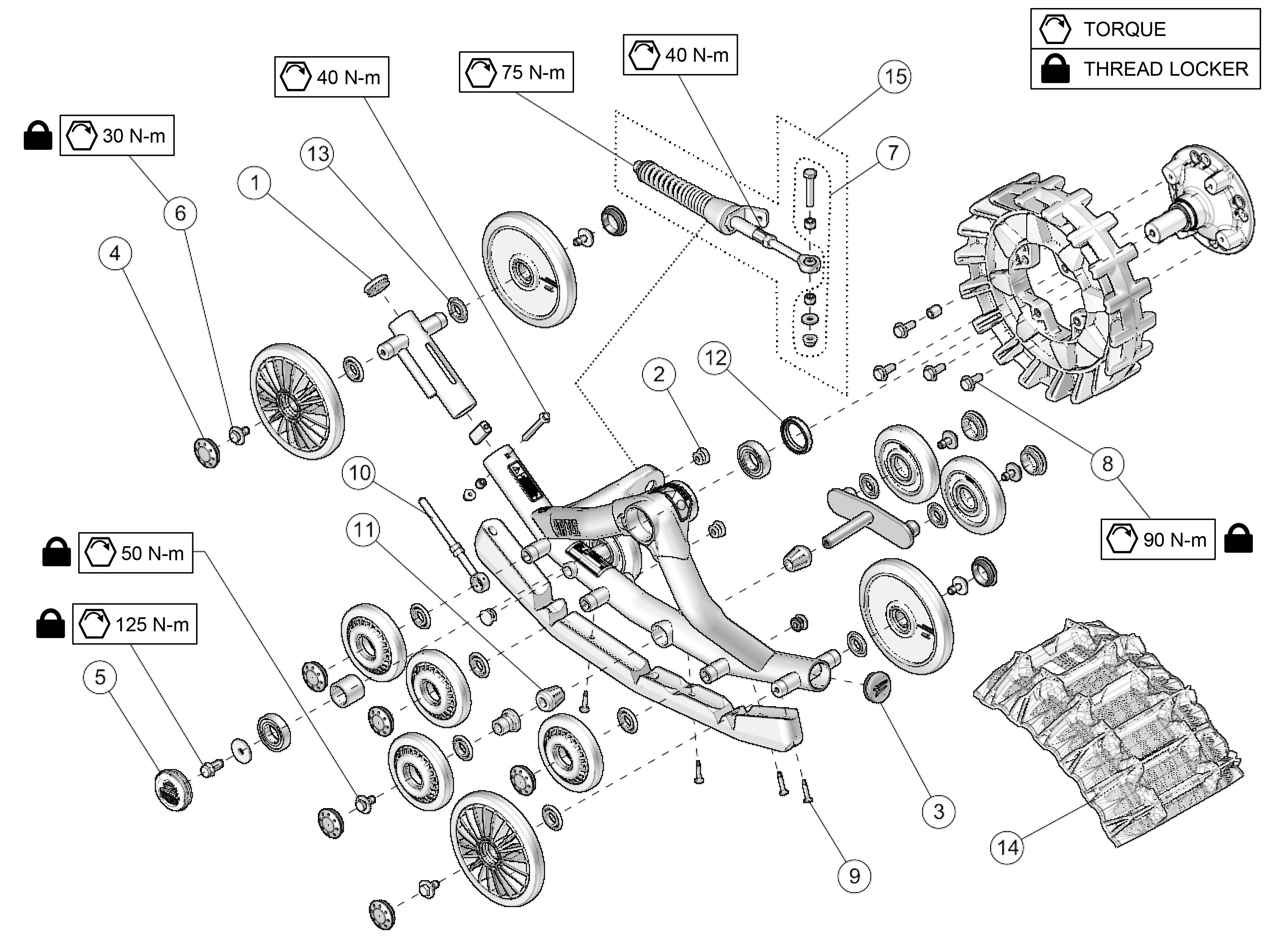

Keeping your 2024 T4S Front Left & Right performing at its peak means having access to the right replacement parts. This parts kit diagram shows every component available for your specific track system.

Kit Contents: FRAME TAIL PLASTIC CAP, PLASTIC WHEEL CAP 1'', PLASTIC FRAME CAP 2'', WHEEL CAP 2'', HUB CAP CAMSO ASSEMBLY, UTV/ATV Bogey Wheels Bolt & Washer: 10mm-1.25x25, Grade 8.8, 30nm or 22ft lbs, STABILIZING ROD SHORT BOLT KIT, UTV/ATV 10mm-1.5x30, Drive Gear Bolt, Torque: 70nm or 52ft lbs, SDSQWS, #12-24X1.5, ZP, TRACK TENSIONER ROD ASSEMBLY, RUBBER CONE, DOUBLE LIPS SHAFT SEAL, ATV Wheel Seal, FRONT TRACK ATV T4S & Smaller UTV X4S, ATV Front & Rear Stabilizing Rod.
