2022 X4S Left & Right Rear

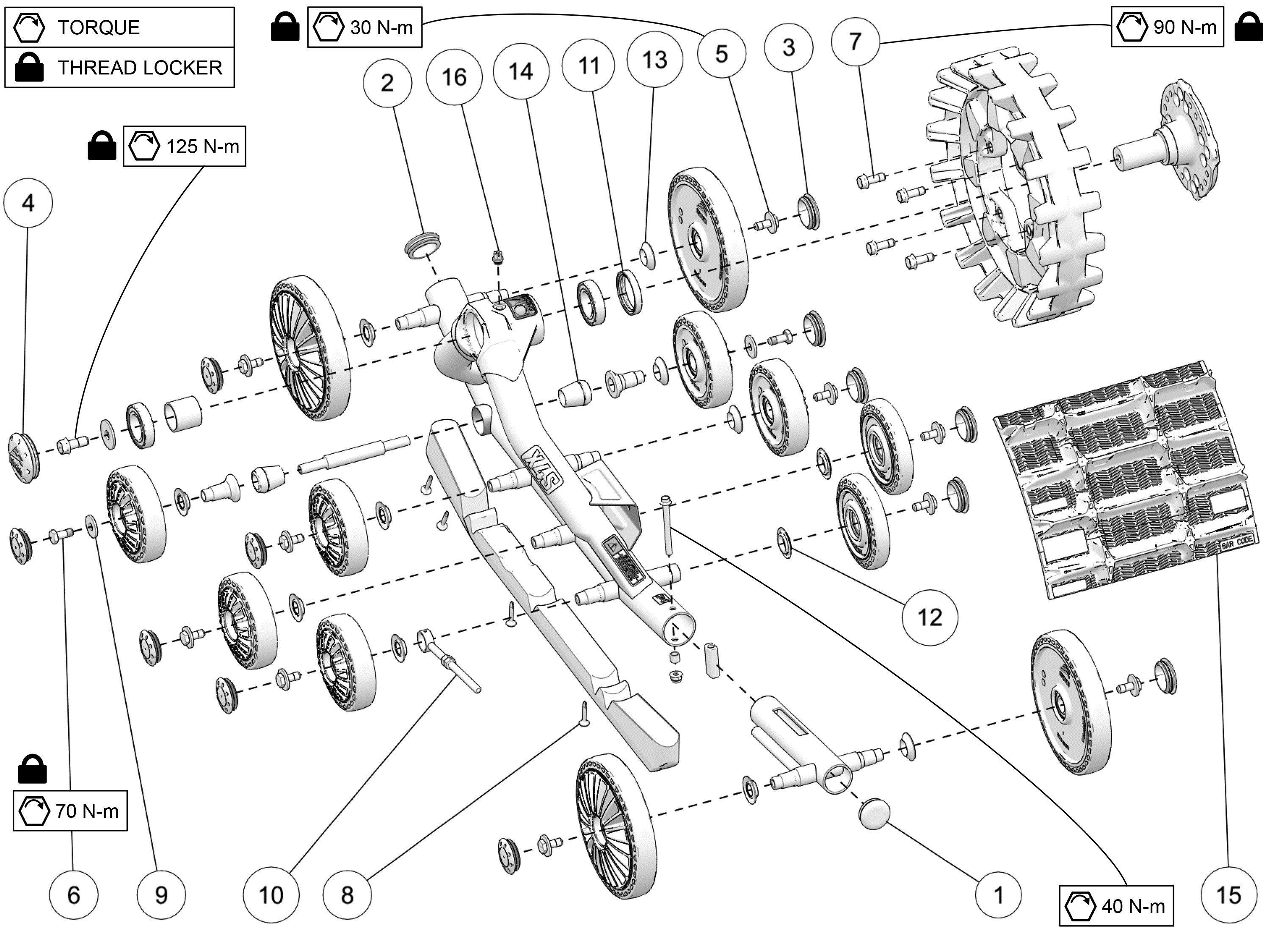

Keeping your 2022 X4S Left & Right Rear performing at its peak means having access to the right replacement parts. This parts kit diagram shows every component available for your specific track system.

Kit Contents: FRAME TAIL PLASTIC CAP, PLASTIC FRAME CAP 2'', WHEEL CAP 2'', HUB CAP CAMSO ASSEMBLY, UTV/ATV Bogey Wheels Bolt & Washer: 10mm-1.25x25, Grade 8.8, 30nm or 22ft lbs, UTV/ATV 10mm-1.5x30, Drive Gear Bolt, Torque: 70nm or 52ft lbs, SDSQWS, #12-24X1.5, ZP, WASHER / RONDELLE -- 3/8X1-1/4, 0.120, ZP, TRACK TENSIONER ROD ASSEMBLY, DOUBLE LIPS SHAFT SEAL, ATV Wheel Seal, X4S SHAFT SEAL, URETHANE CONE, STABILIZER, REAR TRACK ATV T4S & Smaller UTV X4S, HHP, M10-1.
