2016 T4S Front Left & Right

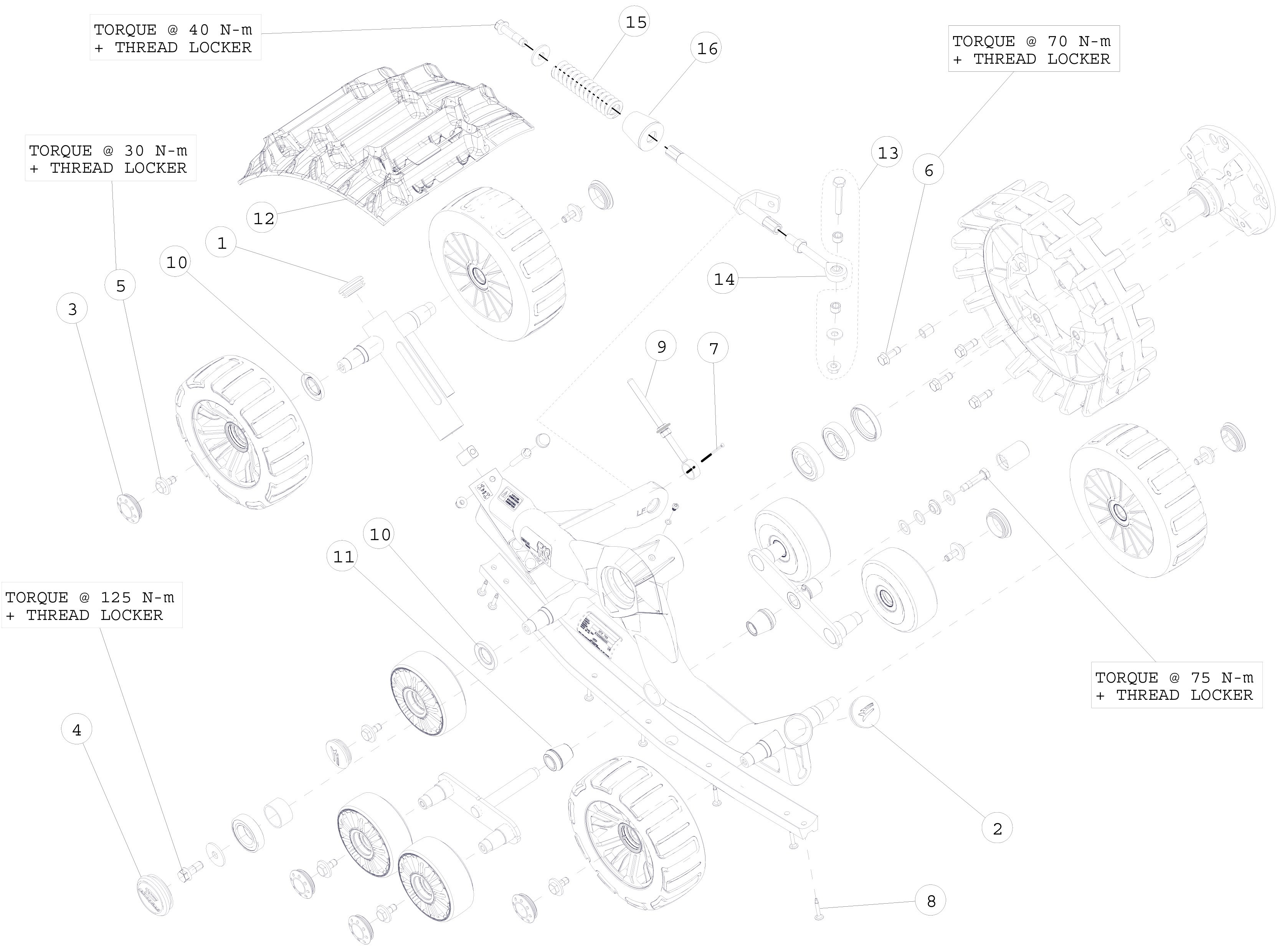

Keeping your 2016 T4S Front Left & Right performing at its peak means having access to the right replacement parts. This parts kit diagram shows every component available for your specific track system.

Kit Contents: FRAME TAIL PLASTIC CAP, PLASTIC FRAME CAP 2'', WHEEL CAP 2'', HUB CAP CAMSO ASSEMBLY, UTV/ATV Bogey Wheels Bolt & Washer: 10mm-1.25x25, Grade 8.8, 30nm or 22ft lbs, SDSQWS, #12-24X1.5, ZP, TRACK TENSIONER ROD ASSEMBLY, SHAFT SEAL (28 X 48 X 6 TC), URETHANE CONE, STABILIZER, FRONT UTV TRACK 12.5 X 98 X 1 (9278S), STABILIZING ROD SHORT BOLT KIT, S-KIT STABILIZING ROD, UTV FRONT, X-LONG ROD END, COMPRESSION SPRING 417 LBS/IN, RUBBER DAMPER.
