2014 T4S Independent Suspension (IS)

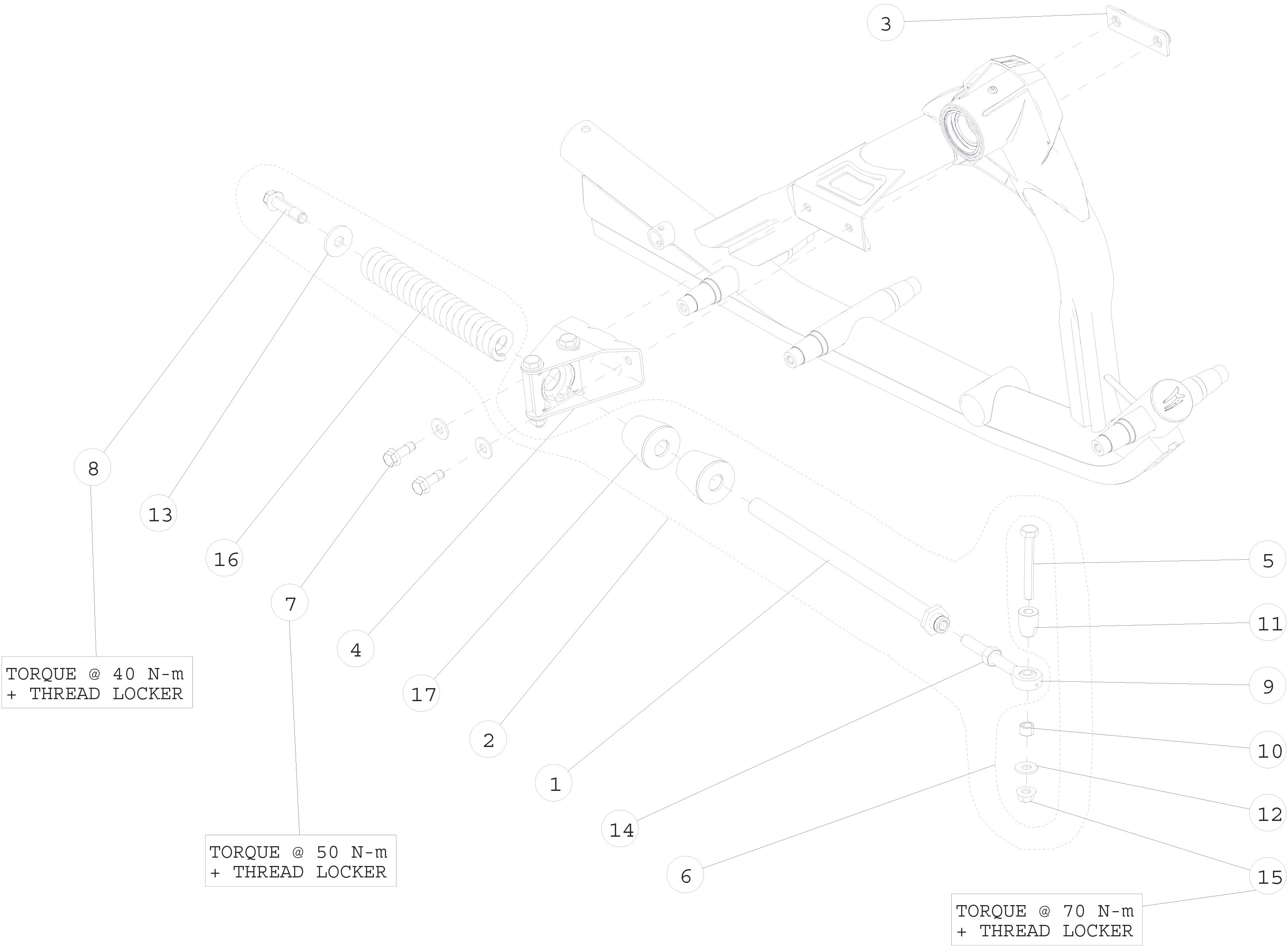

Keeping your 2014 T4S Independent Suspension (IS) performing at its peak means having access to the right replacement parts. This parts kit diagram shows every component available for your specific track system.

Kit Contents: LONG ANTI-ROTATION ROD, S-KIT STABILIZING ROD, UTV REAR, BACK PLATE, S-KIT ANTI-ROTATION IND. SUSPENSION, HCS, M10-1.5X80, 10.9, ZP, DIN931, STABILIZER ROD LONG BOLT KIT, HFSCS, M12-1.75X50, 8.8, ZP, FULL THREAD, X-LONG ROD END, ROD END SPACER, BUSHING YZN ZNJ -0,406IDX 0,875ODX1,100L, WASHER W, 37AX13X3, ZP, DIN9021, HEX THIN NUT, ISO 4035 (DIN 439), 8, YZN / M12X1.25, FNN, M10-1.5, 8, ZP, DI N6926, COMPRESSION SPRING, LG 480 LBS/IN, RUBBER DAMPER.
