2013 XT4S Rear Left And Right

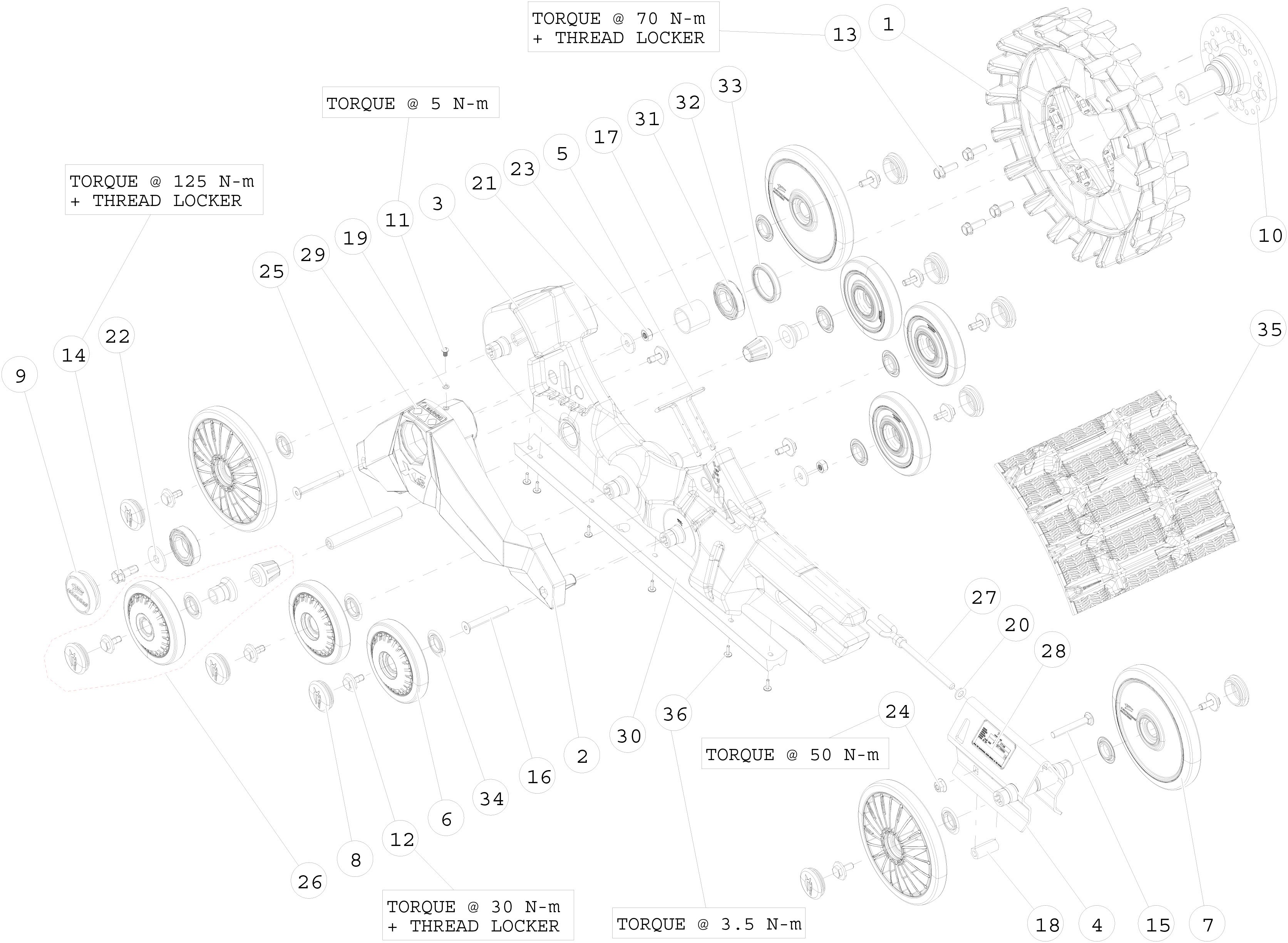

Keeping your 2013 XT4S Rear Left And Right performing at its peak means having access to the right replacement parts. This parts kit diagram shows every component available for your specific track system.

Kit Contents: S-KIT 15/4 SPROCKET, S-KIT 16/4 SPROCKET, S-KIT 17/4 SPROCKET, S-KIT 18/4 SPROCKET, Upper carrier - Silver XT4S, S-kit rear lower frame, Extruded track tensioner, Sprocket scraper, Replacement wheel 134mm assembly, Replacement wheel 202mm assembly, WHEEL CAP 2'', HUB CAP CAMSO ASSEMBLY, S-KIT HUB MULTI POLARIS, S-KIT MULTI MODEL HUB, HSBS, M6-1X10, 10.9, ZP, HFSCS, M12-1.75X30, 10.9, ZP, TL, DIN 6921, CB,M10-1.5X70,8.8,ZP,DIN603, HSFS,M10-1.5X 80,10.9, ZP, INTERNAL SPACER, Tensionner bushing - XT4S, W, 20X10.5X2, ZP, DIN125A, WASHER / RONDELLE -- 3/8X1-1/4, 0.120, ZP, W, 1. 625,0.515,11 GA., Nylon Nut - NN,M10-1.5,ZP,8,DIN982, FNN, M10-1.5, 8, ZP, DI N6926, AXLE, REAR STABILIZER, WHEEL AXLE ASSEMBLY, TENSIONER ROD ASSEMBLY, STICKER WARNING, TRACK GUIDE - XT4S, Top Hub Bearing ALL Camso ATV & UTVs, RUBBER CONE, REAR TRACK ATV T4S & Smaller UTV X4S.
