2013 XT4S Front Left And Right

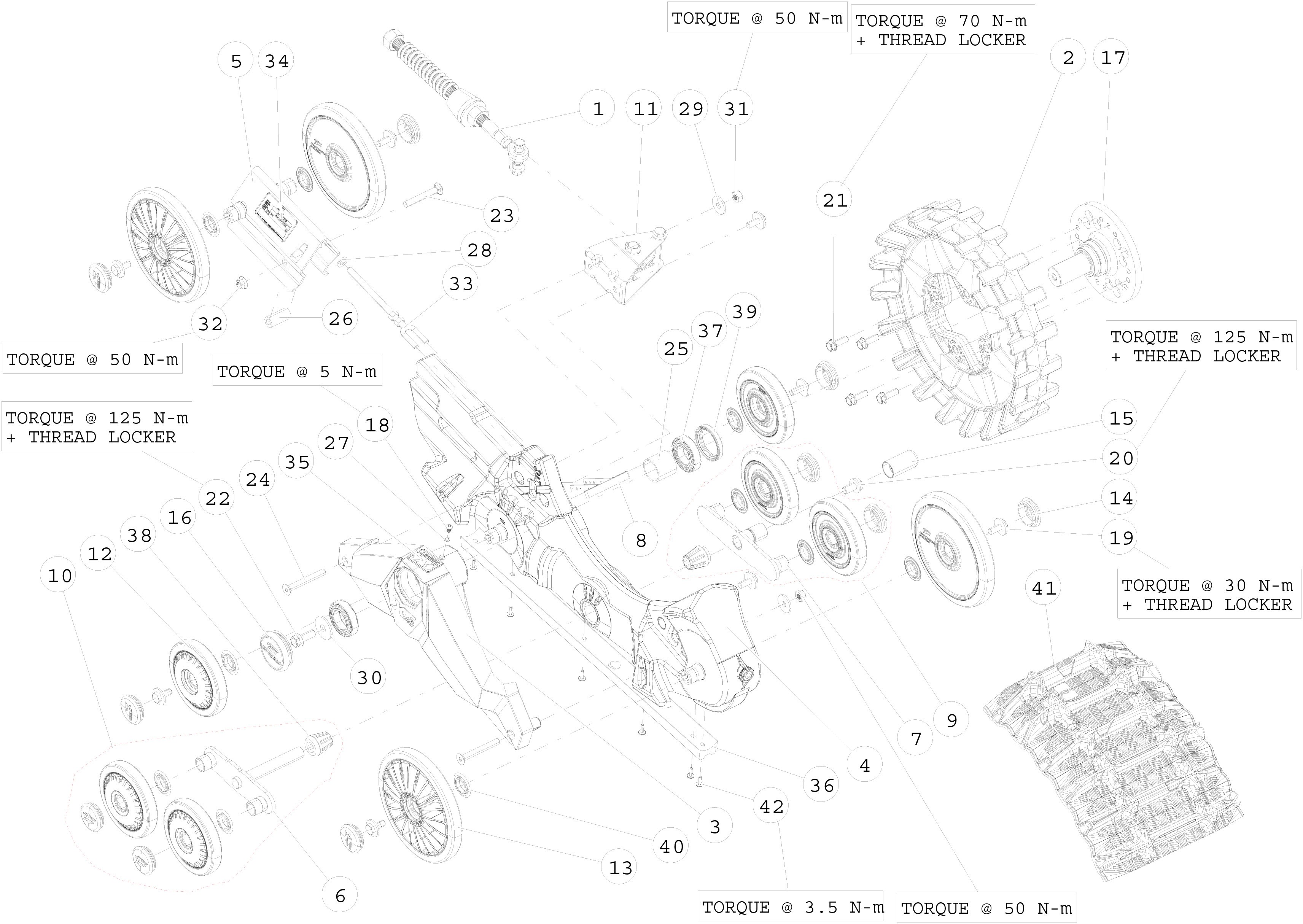

Keeping your 2013 XT4S Front Left And Right performing at its peak means having access to the right replacement parts. This parts kit diagram shows every component available for your specific track system.

Kit Contents: Stabilizing rod ass'y, 370 LBS/IN, S-KIT 15/4 SPROCKET, S-KIT 16/4 SPROCKET, S-KIT 17/4 SPROCKET, S-KIT 18/4 SPROCKET, Upper carrier - Silver XT4S, S/kit front lower frame, Extruded track tensioner, ATV Stabilizer ass'y - Male, ATV Stabilizer ass'y - Female, Sprocket scraper, S-KIT ATV female stabilizer, Stabilizer male ass'y, S-KIT ANTI-ROTATION IND SUSPENSION, Replacement wheel 134mm assembly, Replacement wheel 202mm assembly, WHEEL CAP 2'', DUST CAP STABILIZER, HUB CAP CAMSO ASSEMBLY, S-KIT HUB MULTI POLARIS, S-KIT MULTI MODEL HUB, HSBS, M6-1X10, 10.9, ZP, HEX SCR W/ WASH 25X3, 10.9, YP, TL 9S-1026 / M12X1.75X25, HFSCS, M12-1.75X30, 10.9, ZP, TL, DIN 6921, CB,M10-1.5X70,8.8,ZP,DIN603, HSFS,M10-1.5X 80,10.9, ZP, INTERNAL SPACER, Tensionner bushing - XT4S, W, 20X10.5X2, ZP, DIN125A, WASHER / RONDELLE -- 3/8X1-1/4, 0.120, ZP, W, 1. 625,0.515,11 GA., Nylon Nut - NN,M10-1.5,ZP,8,DIN982, FNN, M10-1.5, 8, ZP, DI N6926, TENSIONER ROD ASSEMBLY, TRACK GUIDE - XT4S, Top Hub Bearing ALL Camso ATV & UTVs, RUBBER CONE, FRONT TRACK ATV T4S & Smaller UTV X4S.
