2003 Tatou Original Front HW double wheel option

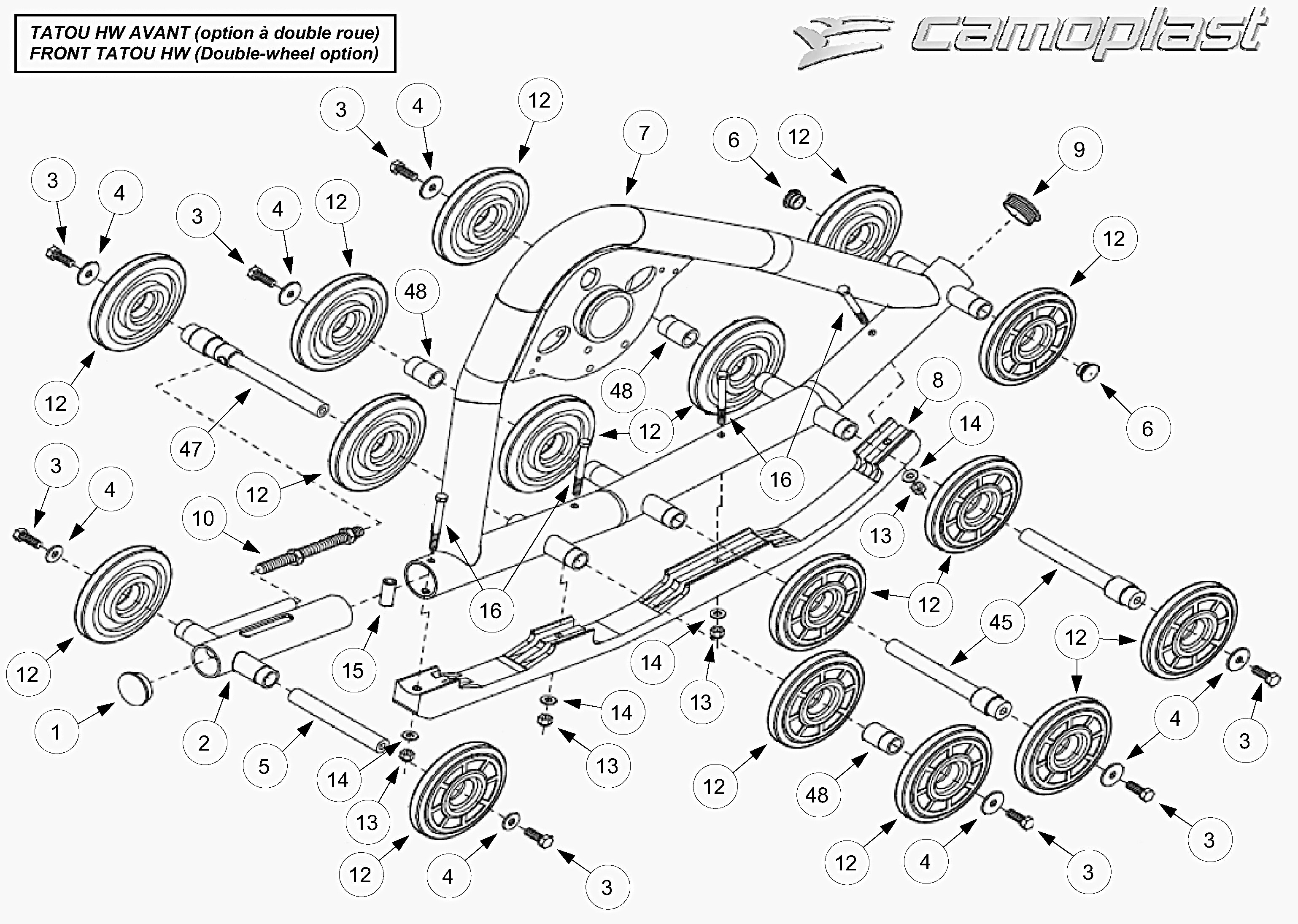

Keeping your 2003 Tatou Original Front HW double wheel option performing at its peak means having access to the right replacement parts. This parts kit diagram shows every component available for your specific track system.

Kit Contents: FRAME TAIL PLASTIC CAP, Frame tail adjuster HW/UTV - silver, Hexagon Head Bolt M8X1.25X20, HEX.HEAD.SCR. 3/8-16 NC X 1" L., FW,0.340x1.25x0.062,ZP, WASHER / RONDELLE -- 3/8X1-1/4, 0.120, ZP, Aluminium Shaft, PLASTIC WHEEL CAP 1 1/4'', Front right frame std - silver, Front left frame std - silver, Track guide kit, PLASTIC FRAME CAP 2'', Adjustment Rod 7/16 (UTV-HW), 132 MM RUBBERIZED UHMW WHEEL, NYLON LOCKNUTS 5/16-18 UNC, W, 11/16X11 / 32X0.060, 8, ZP, SAE, TENSIONER BUSHING, HEX.HEAD.SCR. 5/16-18 NC X 3" L., WHEEL SHAFT HW IS, HW WHEEL SHAFT (TENSIONER), 1'' MACHINE TUBE.
