2017 R4S Front Left & Right

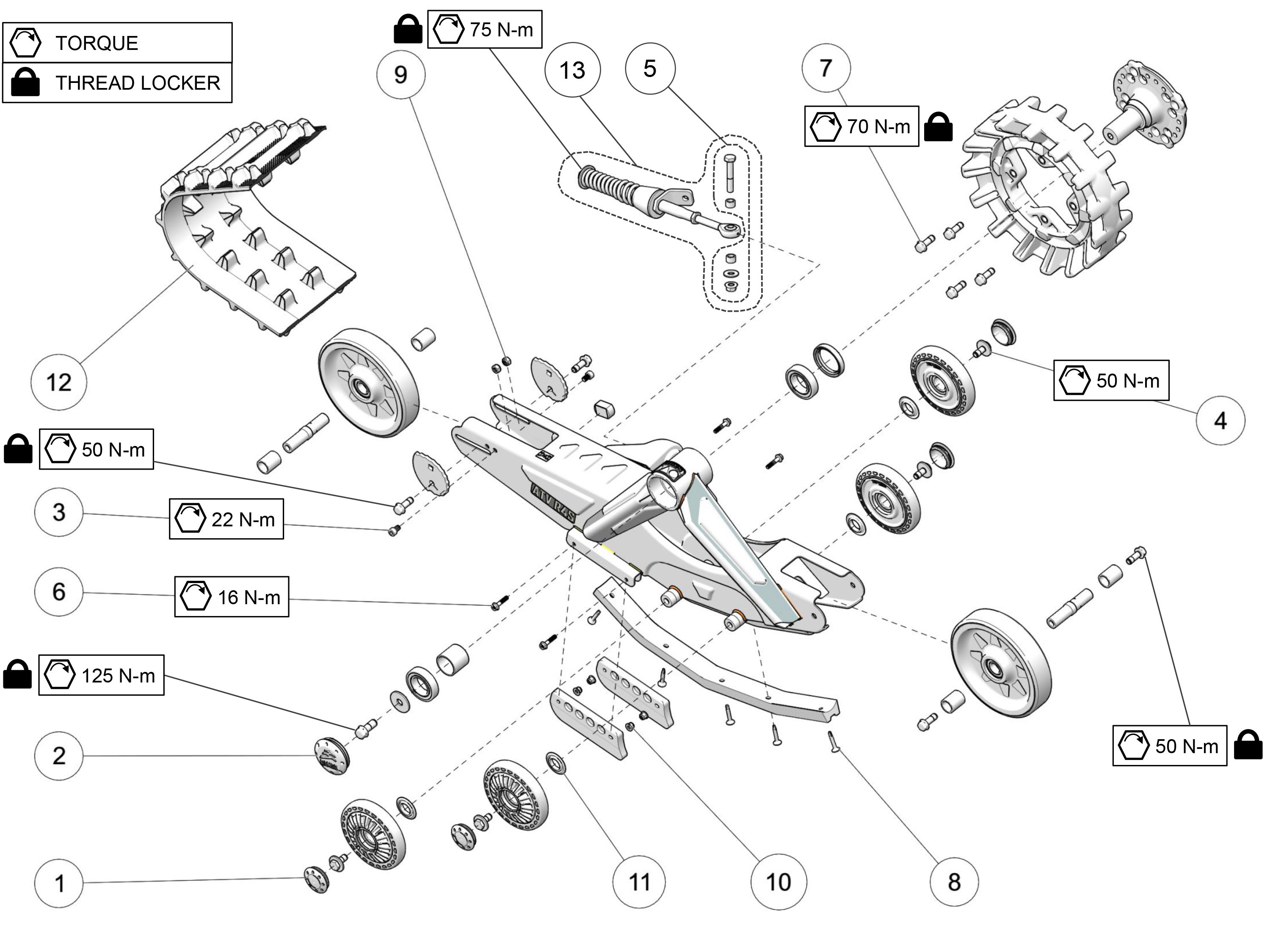

Keeping your 2017 R4S Front Left & Right performing at its peak means having access to the right replacement parts. This parts kit diagram shows every component available for your specific track system.

Kit Contents: WHEEL CAP 2'', HUB CAP CAMSO ASSEMBLY, HSCS,M8-1.25X12,8.8,ZP,DIN912, UTV/ATV Bogey Wheels Bolt & Washer: 10mm-1.25x25, Grade 8.8, 30nm or 22ft lbs, STABILIZING ROD SHORT BOLT KIT, HFCS,M6-1X30,10.9,ZP.DIN6921, UTV/ATV 10mm-1.5x30, Drive Gear Bolt, Torque: 70nm or 52ft lbs, SDSQWS, #12-24X1.5, ZP, NN,M8-1.25,8,ZP,DIN985, FNN,M6-1,8,ZP,DIN6926, ATV Wheel Seal, FRONT TRACK ATV R(9342S) R4S ONLY, S-KIT STABILIZING ROD ATV.
