2012 T4S Independent Suspension (IS)

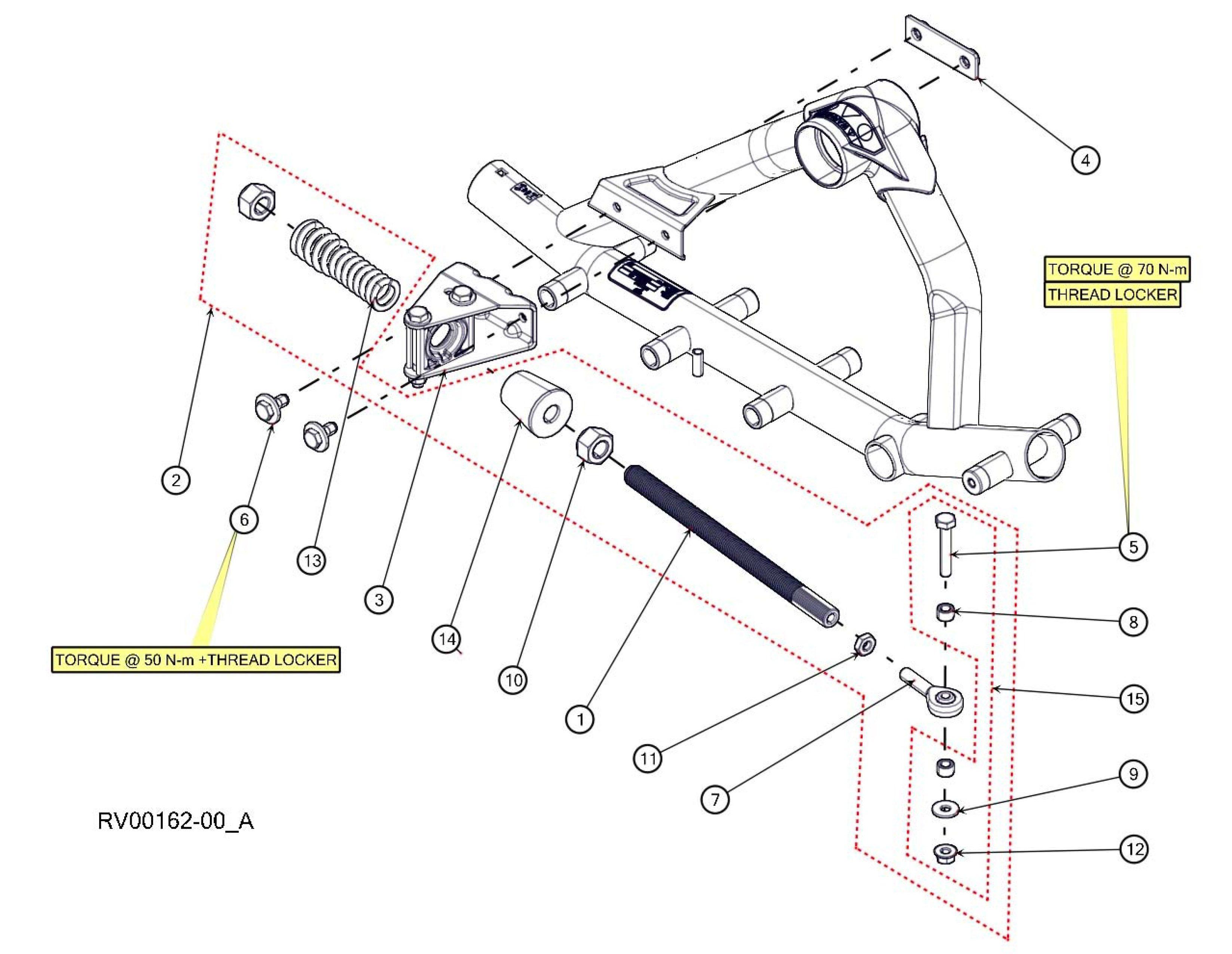

Keeping your 2012 T4S Independent Suspension (IS) performing at its peak means having access to the right replacement parts. This parts kit diagram shows every component available for your specific track system.

Kit Contents: THREADED ROD, LONG, Stabilizing rod ass'y, 480 LBS/IN, S-KIT ANTI-ROTATION IND. SUSPENSION, BACK PLATE, HCS, M10-1.5X80, 10.9, ZP, DIN931, ROD END, STABILIZING ROD, ROD END SPACER, BUSHING YZN ZNJ -0,406IDX 0,875ODX1,100L, HEX NYLON INSERT, ISO 7040 (DIN 982), 8, YZN / M20X2.5, HEX THIN NUT, ISO 4035 (DIN 439), 8, YZN / M12X1.25, FNN, M10-1.5, 8, ZP, DI N6926, COMPRESSION SPRING, LG 480 LBS/IN, RUBBER DAMPER, STABILIZER ROD LONG BOLT KIT.
