2010 TATOU 4S Independent Suspension (IS) Option

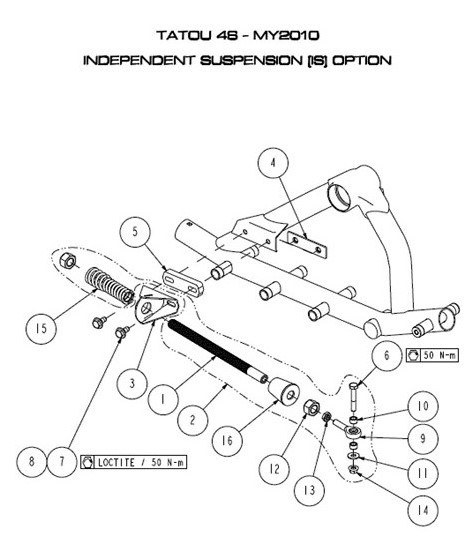

Keeping your 2010 TATOU 4S Independent Suspension (IS) Option performing at its peak means having access to the right replacement parts. This parts kit diagram shows every component available for your specific track system.

Kit Contents: THREADED ROD, STABILIZING ROD, Stabilizing rod assy (metric), BRACKET ANTI-ROTATION (IS), BACK PLATE, SPACER 5/8", ANTI-ROTATION BRACKET, HEX SCR, ISO 4014 (DIN 931), 10.9,YZN / M10X1.5X60, STABILIZING ROD SHORT BOLT KIT, UTV/ATV Bogey Wheels Bolt & Washer: 10mm-1.25x25, Grade 8.8, 30nm or 22ft lbs, S-Kit - Replacement part 1033-10-8045, ROD END, STABILIZING ROD, ROD END SPACER, HEX NYLON INSERT, ISO 7040 (DIN 982), 8, YZN / M20X2.5, HEX THIN NUT, ISO 4035 (DIN 439), 8, YZN / M12X1.25, FNN, M10-1.5, 8, ZP, DI N6926, STABILIZING ROD SPRING 200 LBS/IN, RUBBER DAMPER.
