2008 Tatou Original ATV Rear

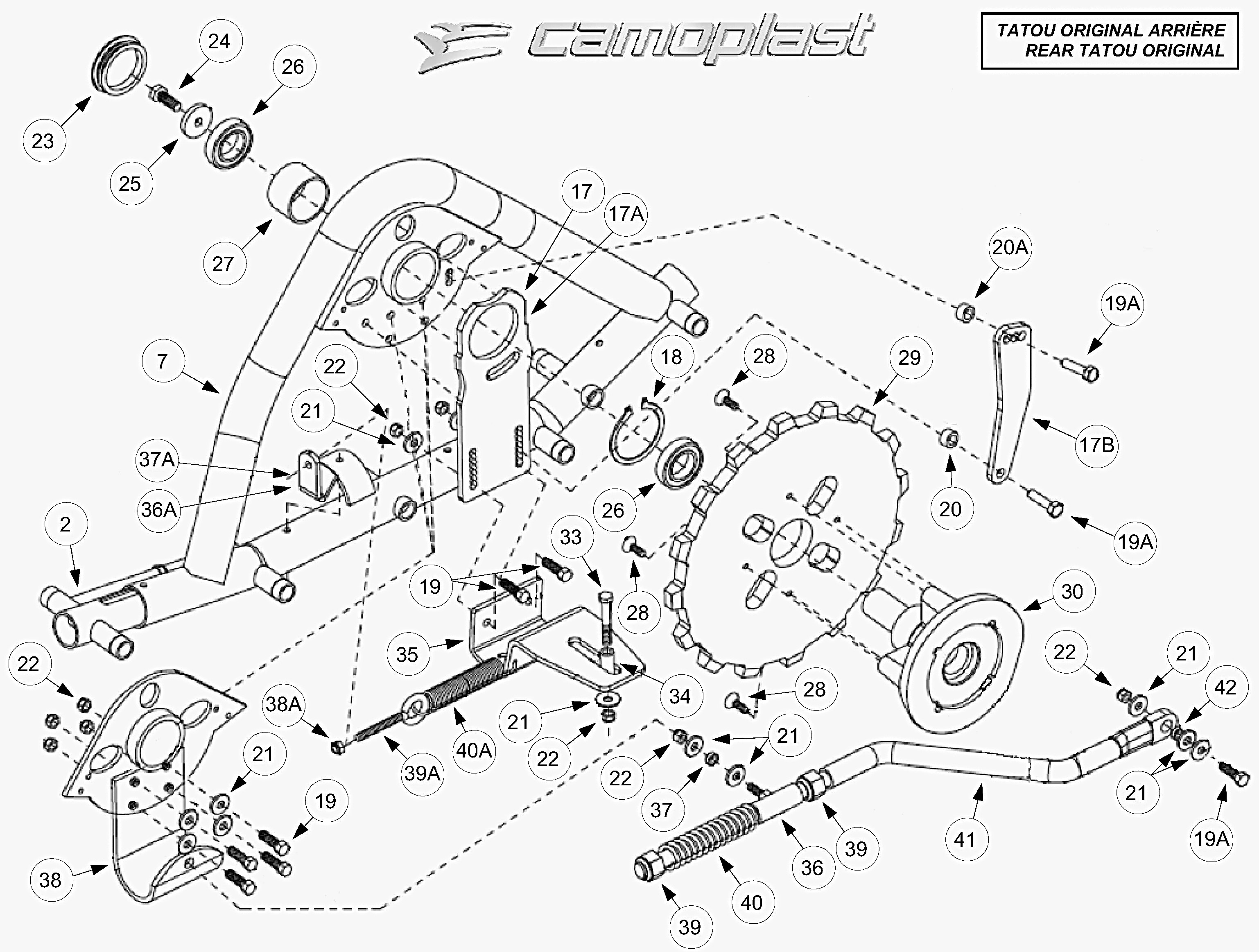

Keeping your 2008 Tatou Original ATV Rear performing at its peak means having access to the right replacement parts. This parts kit diagram shows every component available for your specific track system.

Kit Contents: S-kit - tensionner Tatou 4S, Rear right frame std - silver, Rear left frame std - silver, Rear Rocking Plates Independant.Susp., Pivot Plate Reinforcement, Snap Ring Standard (1400-287) 2 7/8, HEX.HEAD.SCR. 3/8-16 NC X 1-1/4" L., BUSHING 5/16 0,410ID X 0,625OD X 0,340L, Bushing 0,750od X 0,382id X 0,322L, W, 7/16X1.0X0.072, 8, ZP, USS, NYLON LOCKNUTS 3/8-16 UNC, HUB CAP CAMSO ASSEMBLY, HEX.HEAD.SCR. 1/2-13 NC X 1-1/4" L., W, 1. 625,0.515,11 GA., Top Hub Bearing ALL Camso ATV & UTVs, INTERNAL SPACER, HSFS,3/8-16x1.25,5, ZP, Sprocket 16 teeth -5 bolts, S-kit - hub multi - retrofit, S-KIT HUB MULTI POLARIS, S-kit - hub 5 bolts - retrofit, HCS,3/8-16x2.50,5,ZP,UNC, BUSHING PLAIN1 1/2 0,390IDX0,625ODX1,500L, Standard pivot limitor, STABILIZING ARM GUIDE ASS (SERVICE PART), BUSHING 1/4 0,390ID X 0,6250D X 0,280L, Right Independent Suspension Bracket, Left Independent Suspension Bracket, Rear Plates ''J'' 4'', NYLON LOCKNUTS 3/4-10 UNC, EY,3/8-16x3.25,0.8125,5,ZP, STABILIZING ROD SPRING 200 LBS/IN, ROD END SPACER.
